To connect a new LTI 1.3 AI-Assessment-Overview tool to an existing LTI 1.3 Assignment tool integration in Edsby, follow these steps:
-

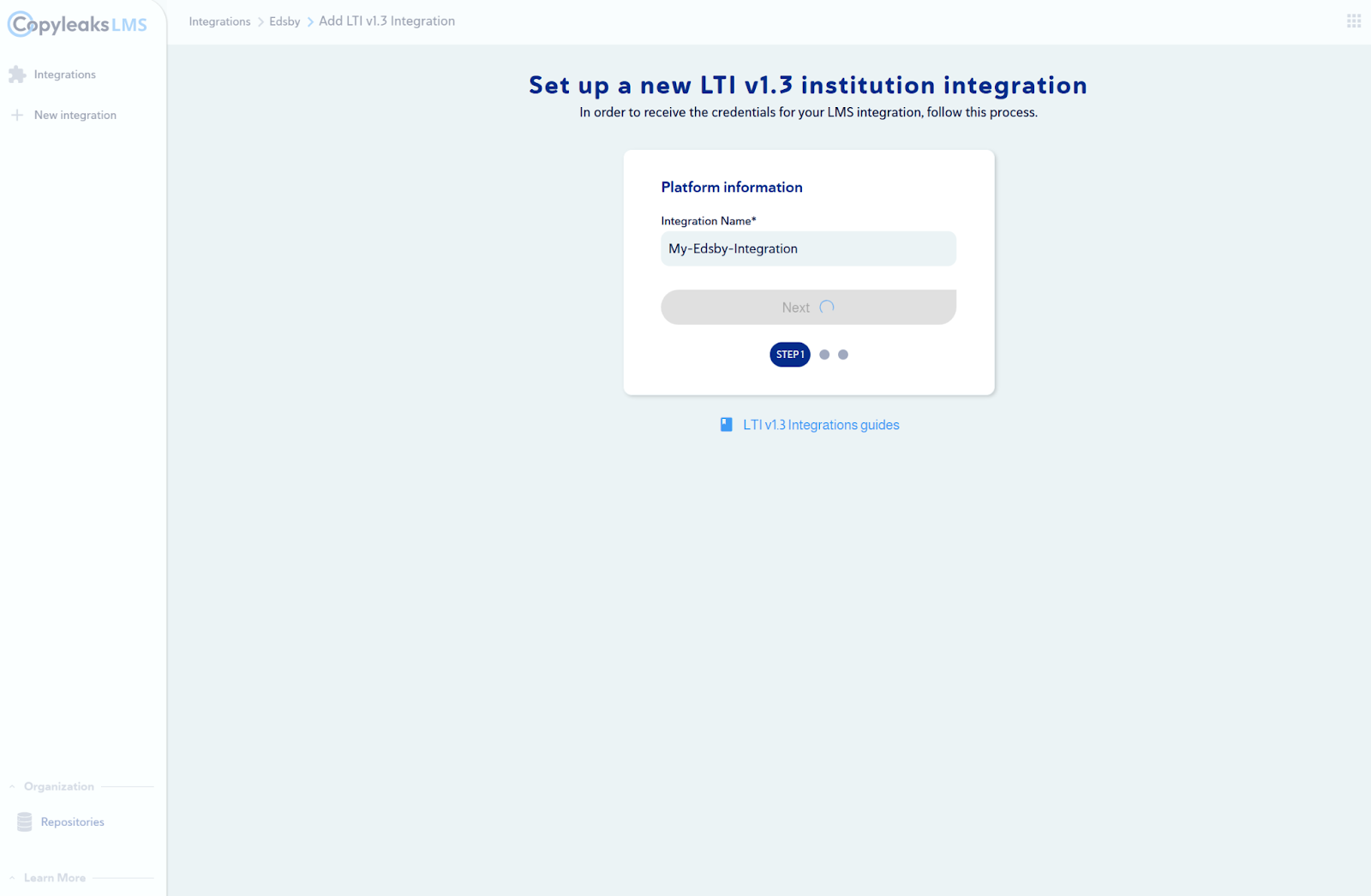

Go to Copyleaks Dashboard:

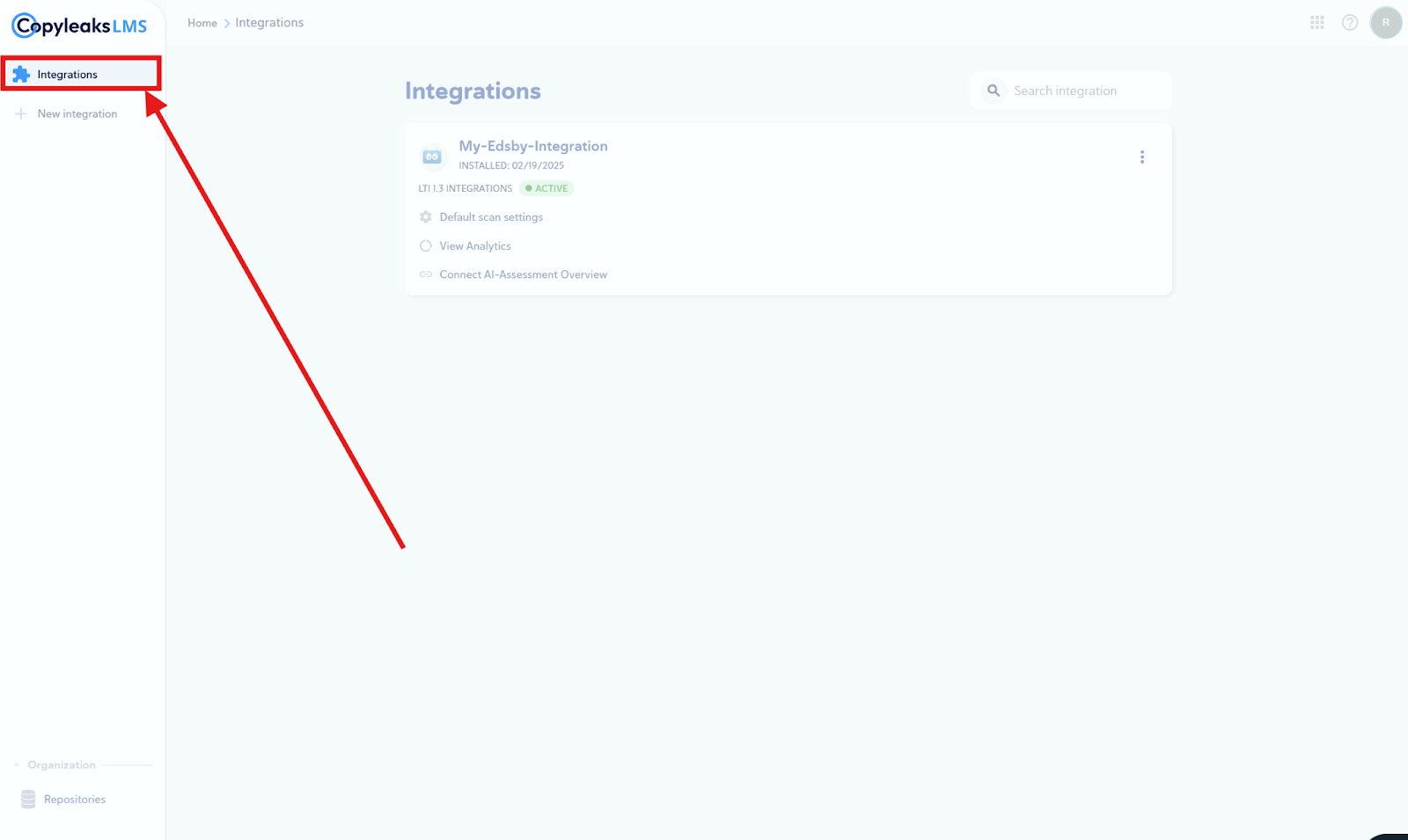

- In the Copyleaks Dashboard click on “Integrations” tab (if you are not in the integrations tab already):
- If you don't have active LTI 1.3 Assignment tool integration, first go through the “LTI 1.3 integration setup guide” and create an Assignment tool integration first.
- In the Copyleaks Dashboard click on “Integrations” tab (if you are not in the integrations tab already):
-
Once you have set up a LTI 1.3 integration for Assignment tool, go to Edsby and login as Administrator (Leave Copyleaks Dashboard tab open):
-

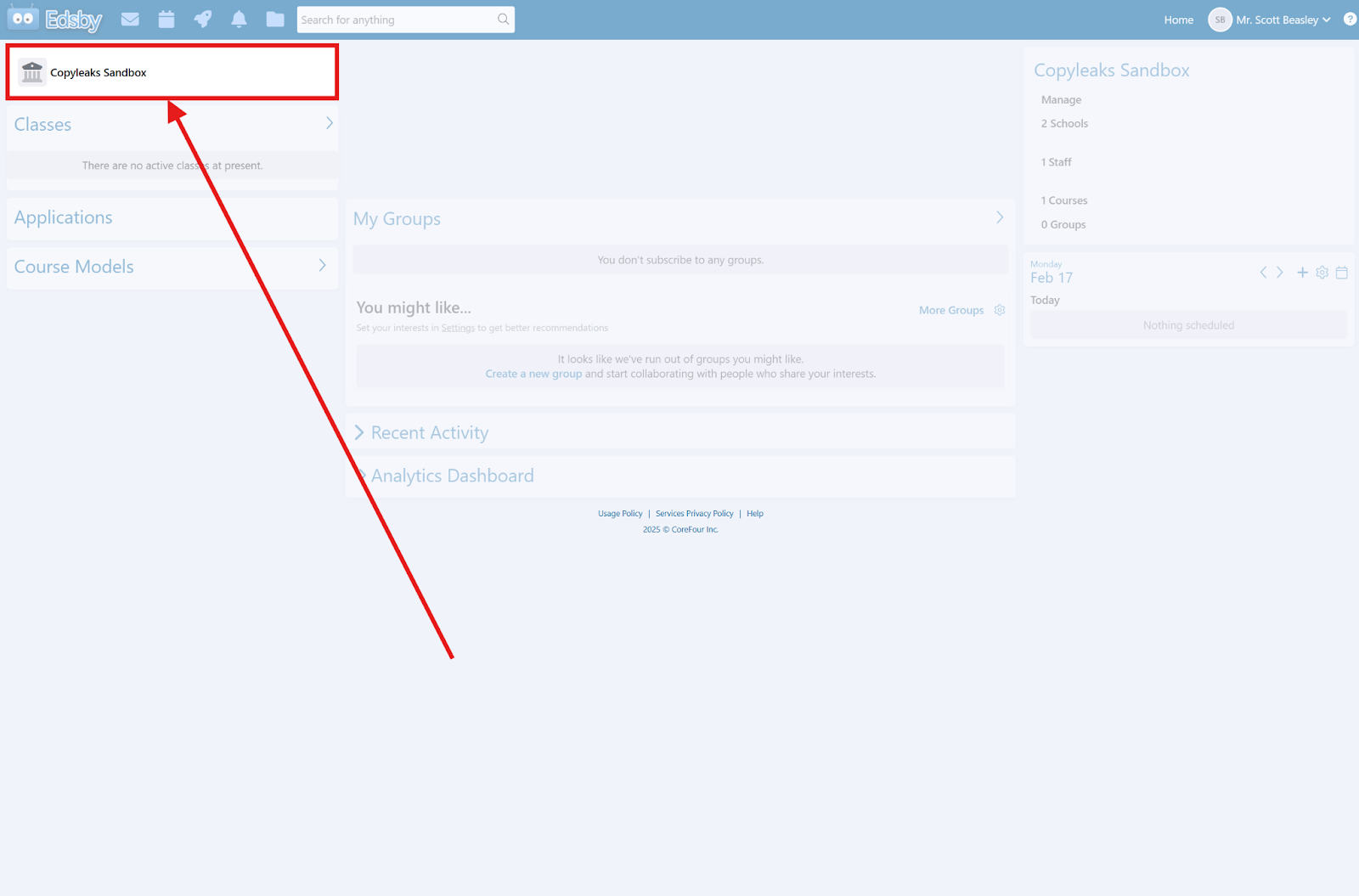

In the top left corner, click on the district you want to configure the copyleaks tools for:

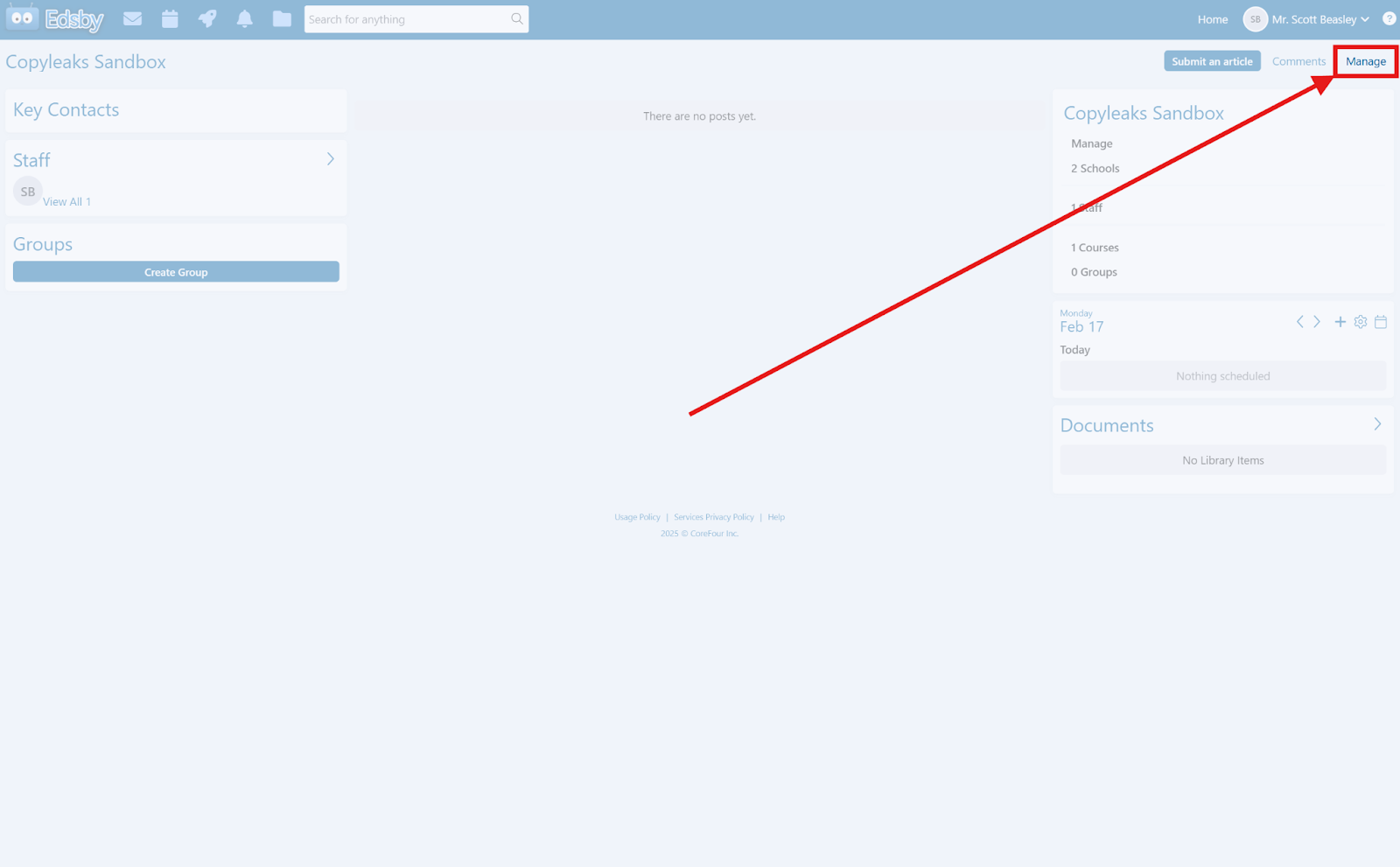

- In the top right corner, click on the "Manage" button:

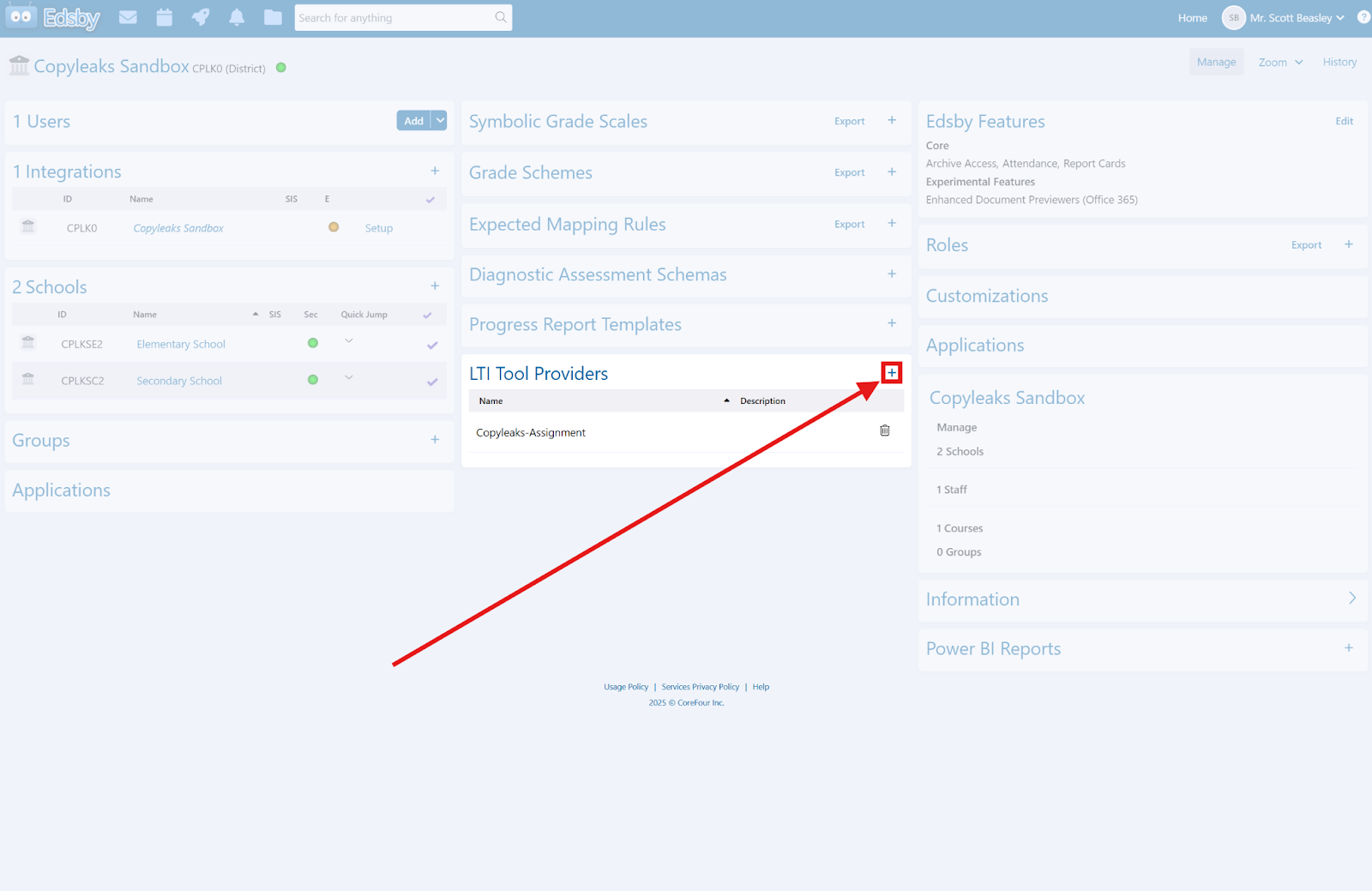

- In the “LTI Tool Providers” section, click on the “+” button:

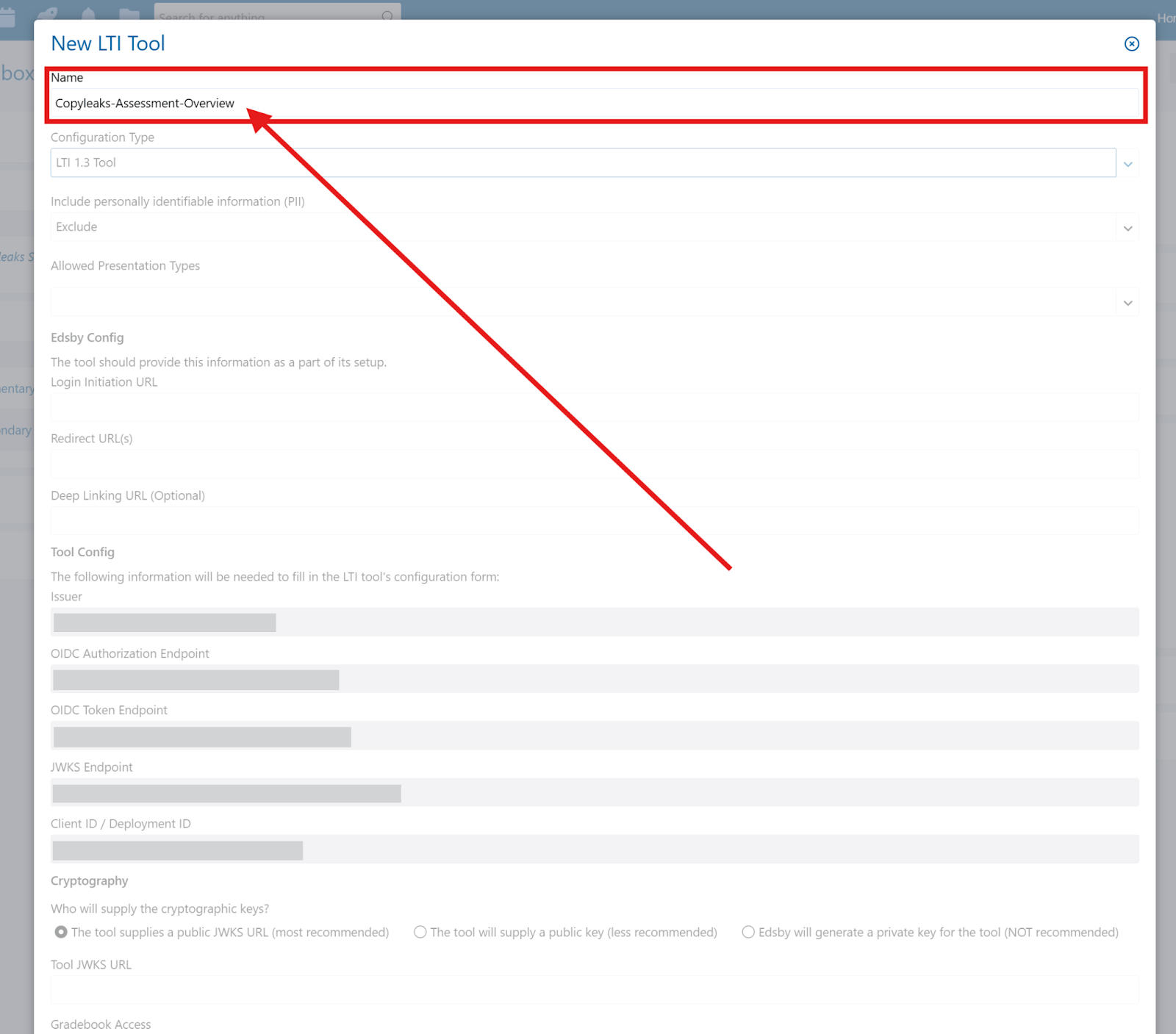

- A form will come up. First fill up the “Name” input field with a name of your choice:

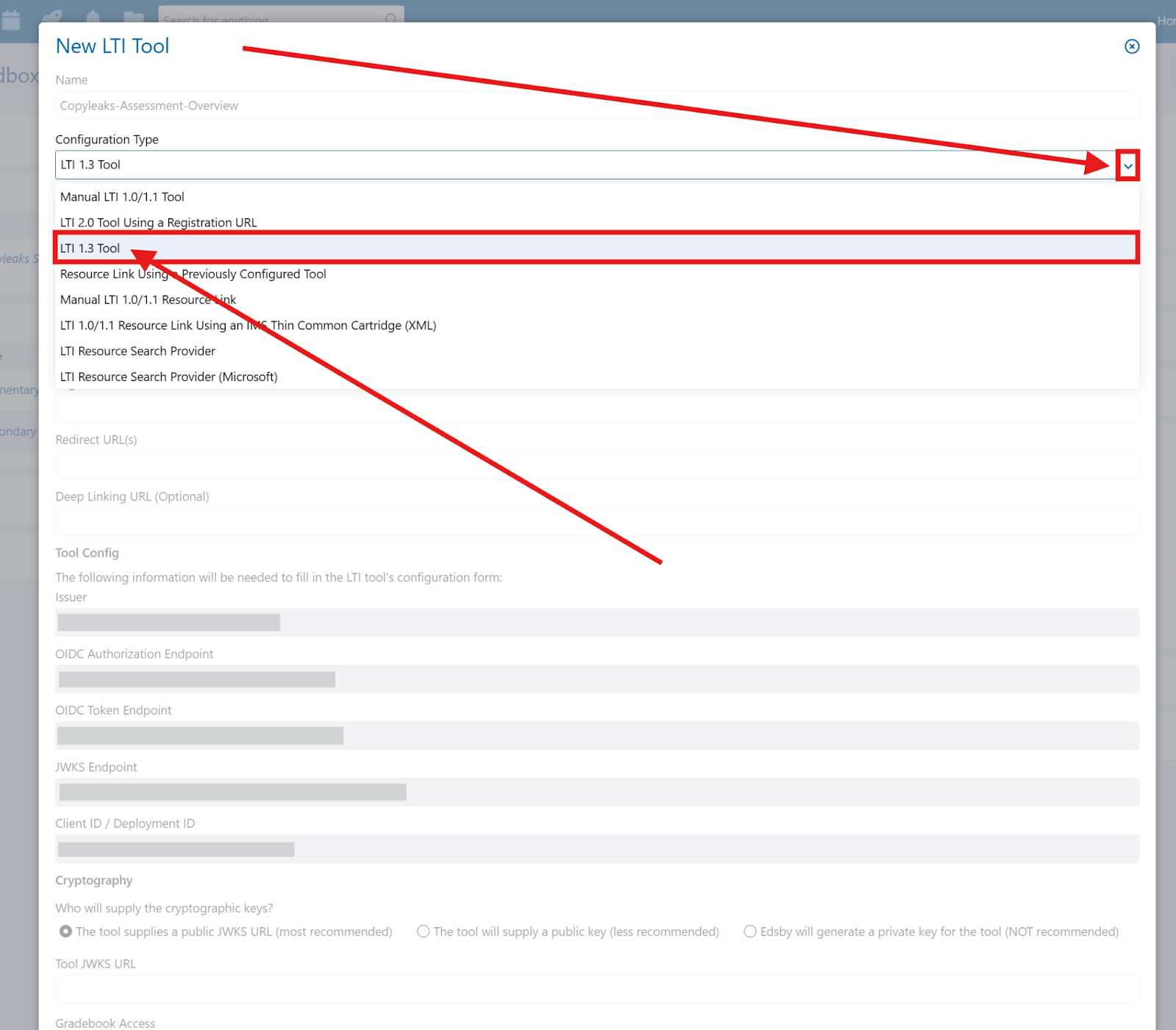

- In the drop down menu for “Configuration Type” Choose “LTI 1.3 Tool”:

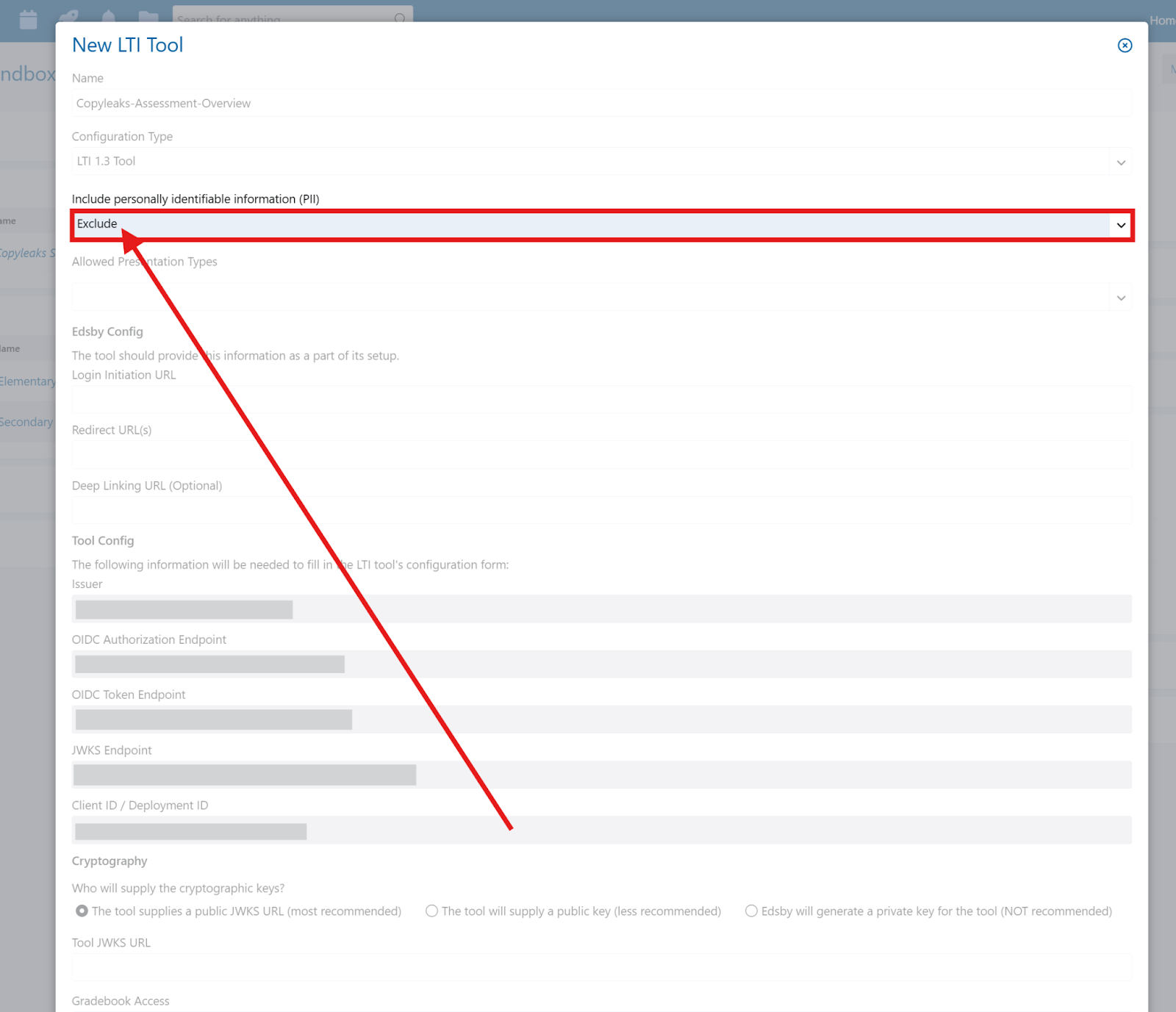

- In the drop down menu for “Include personally identifiable information (PII)” Choose “Exclude”:

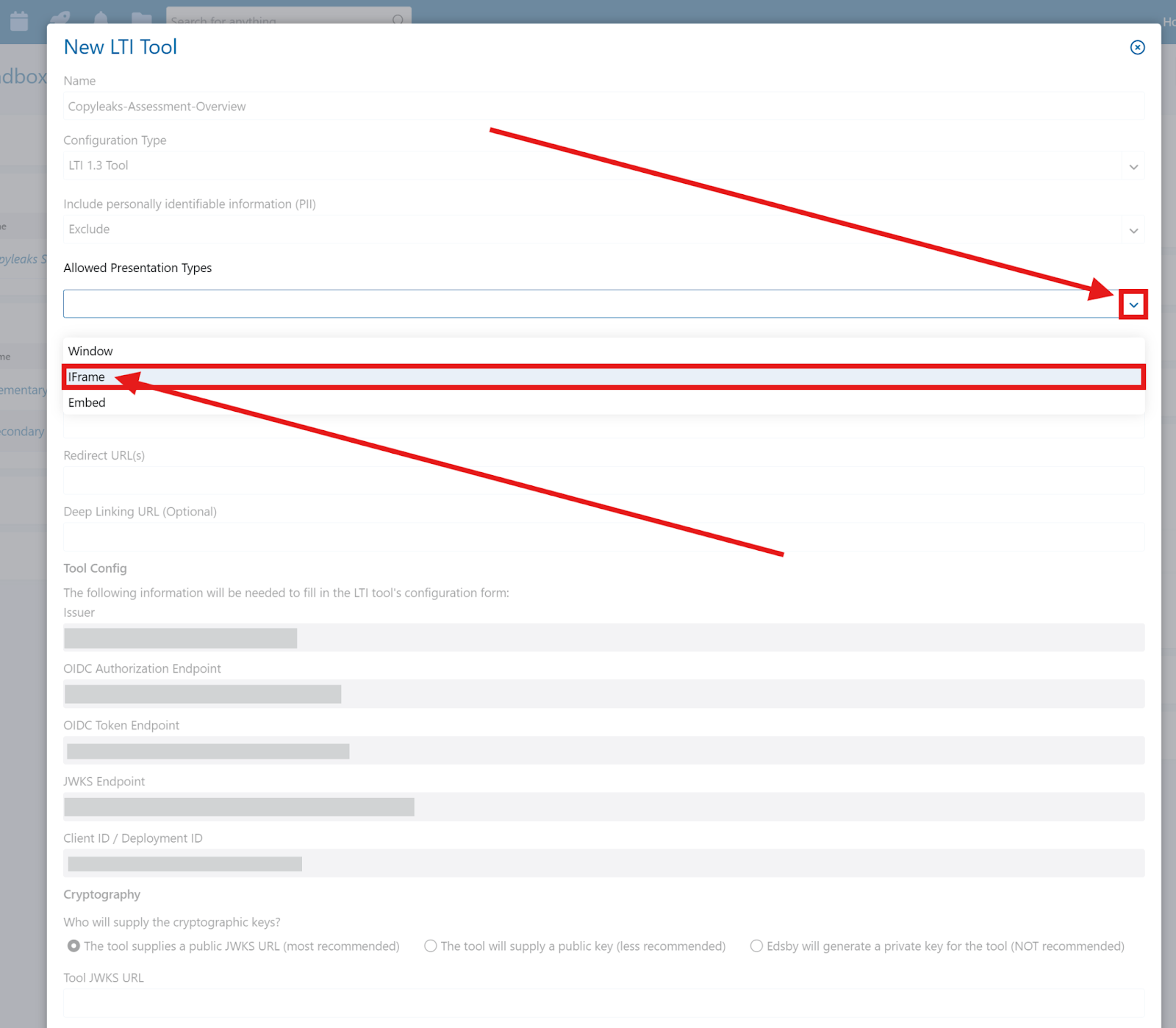

- In the drop down menu for “Allowed Presentation Types” Choose “IFrame”:

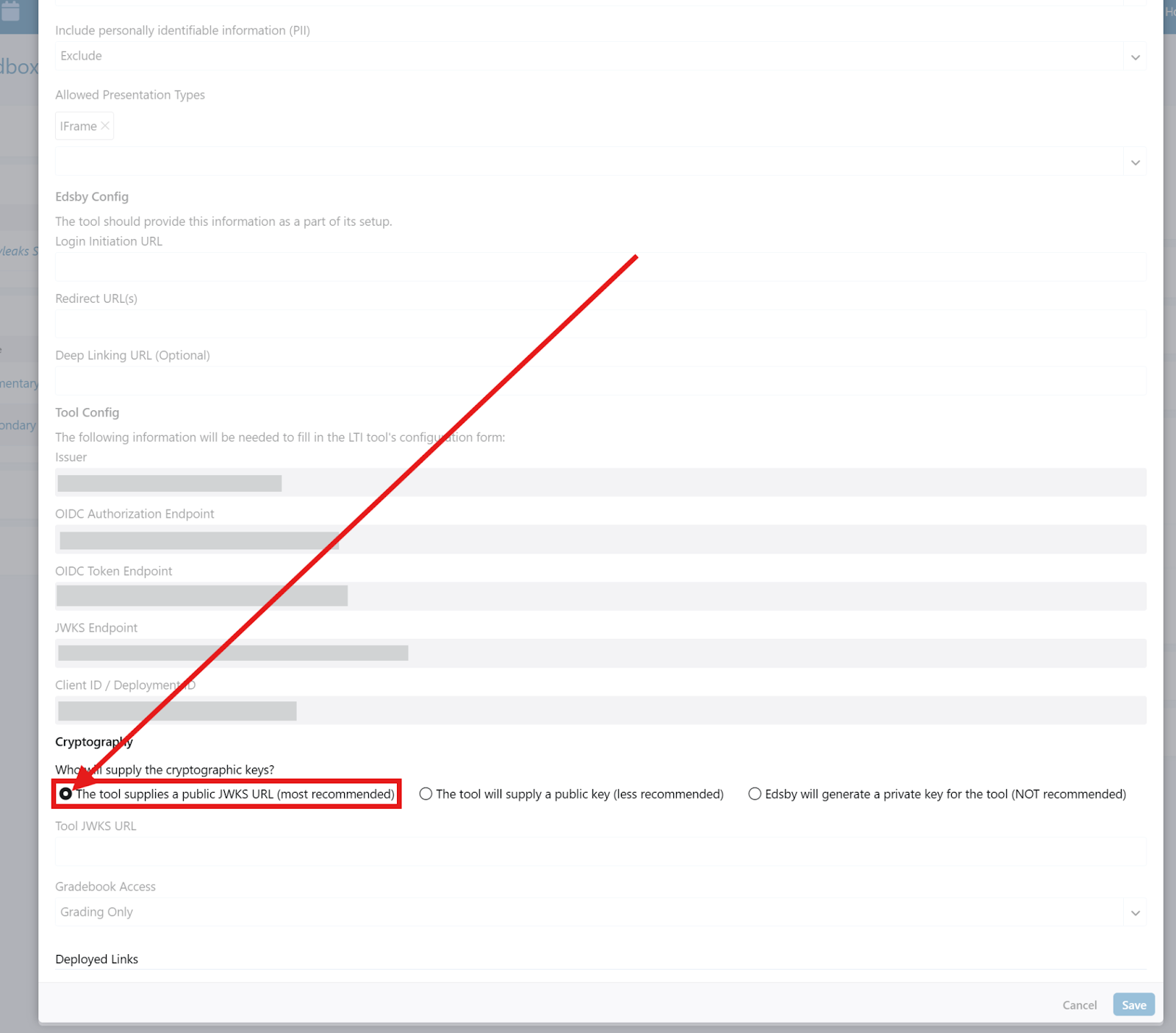

- In the bottom of the form, under “Cryptography”, select “The tool supplies a public JWKS URL (most recommended)”:
-
-
Now go back to the Copyleaks Dashboard tab you left open from previous steps (Leave Edsby LTI1.3 tool setup tab open)
- In Copyleaks Dashboard integrations page, Click on the “Connect AI-Assessment Overview” link for, existing assignment tool integration you want to connect the AI-Assessment Overview tool integration to.
- The first step of the setup process is automatic. Wait for the first step to finish.

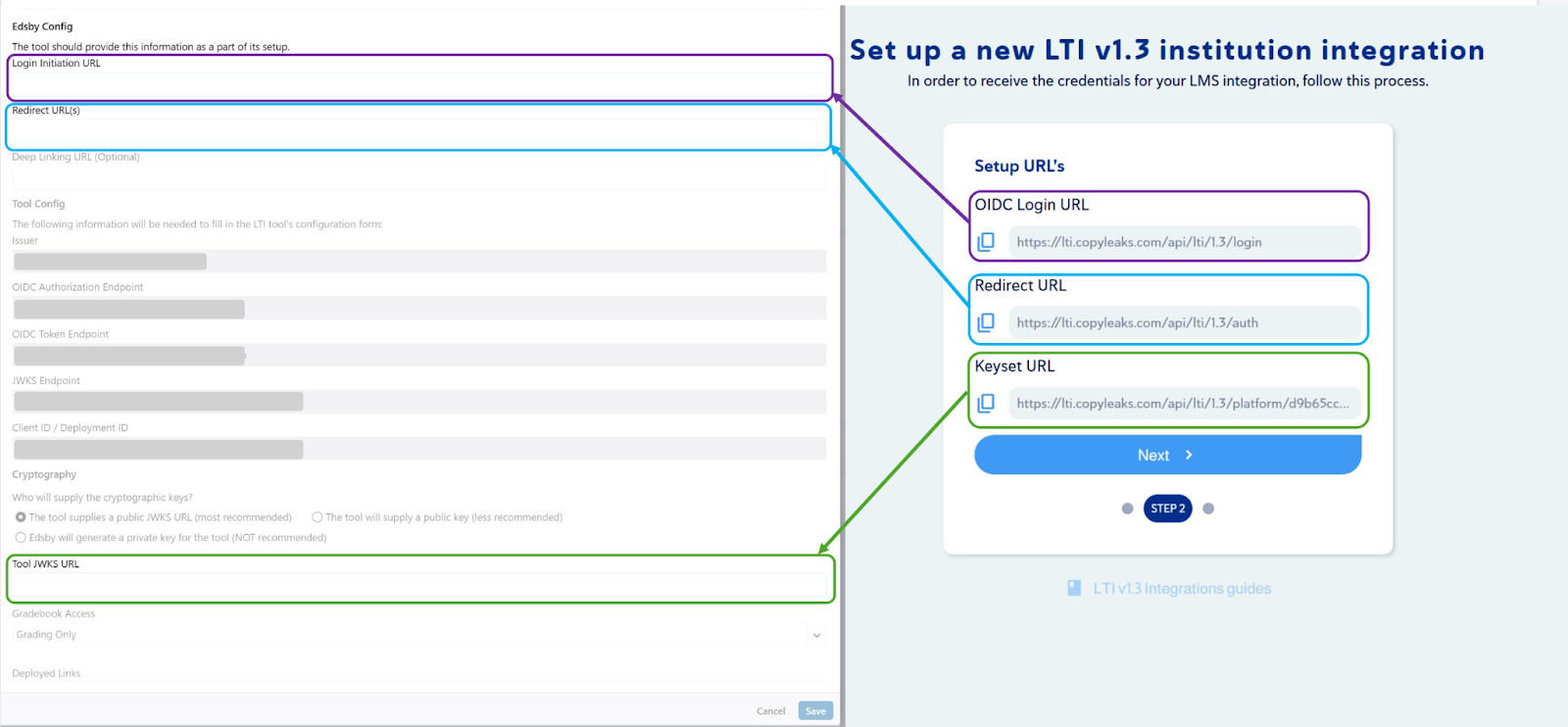

- Copy and paste the links provided in Copyleaks Dashboard setup tab to the right input fields in Edsby tool setup tab as shown in the image below:

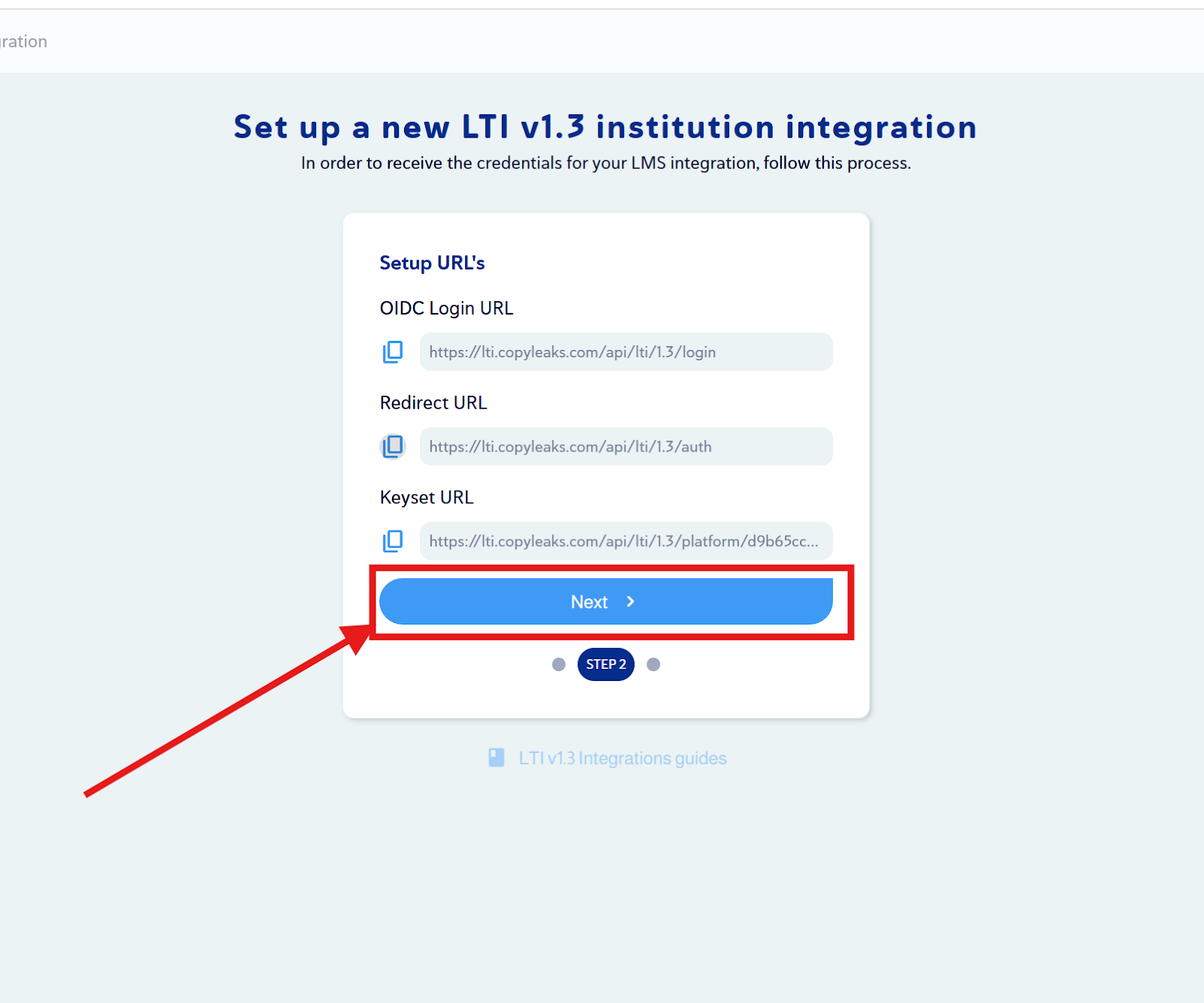

- Click on the “Next” button in Copyleaks Dashboard:

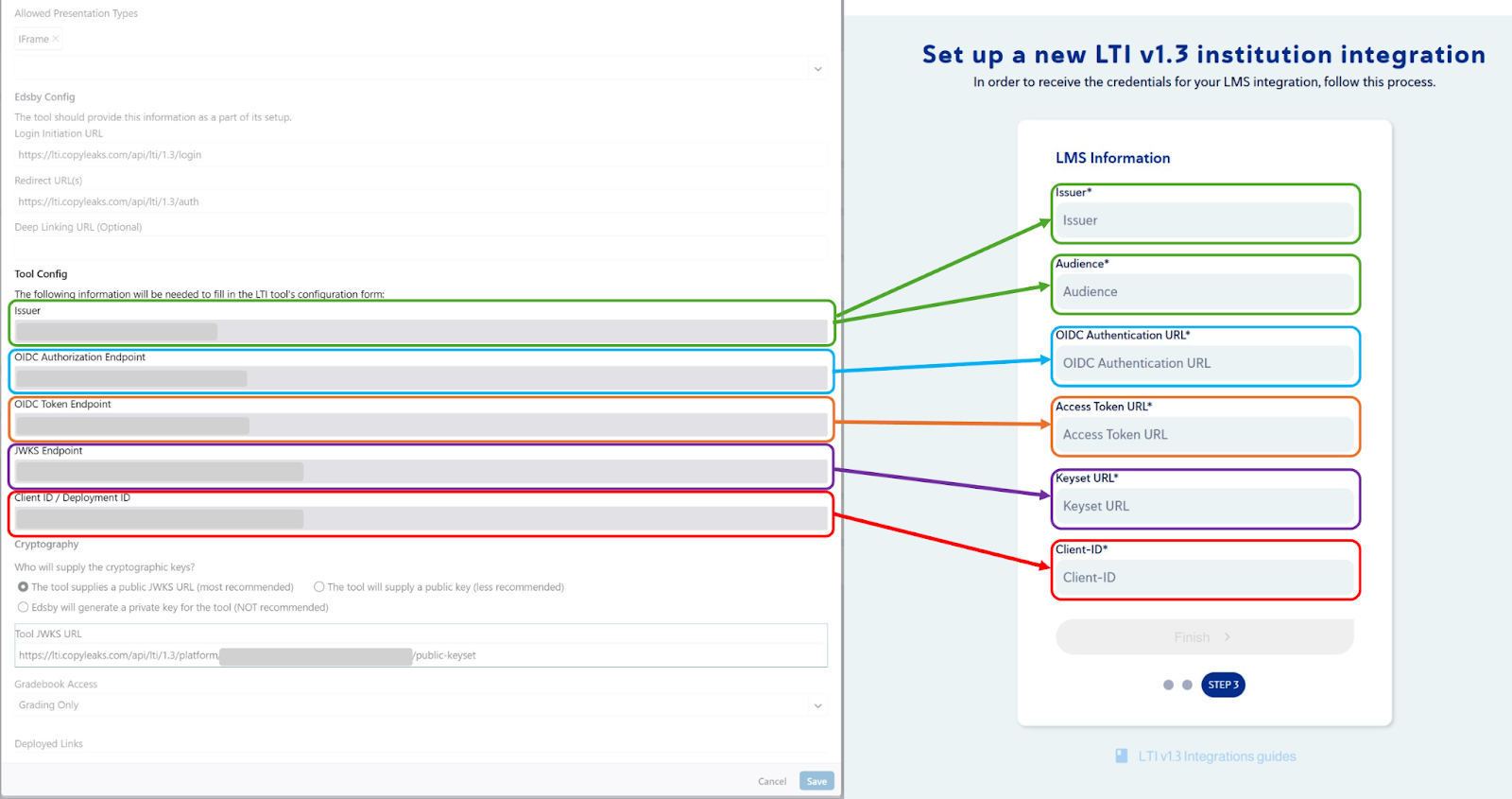

- Next, From Edsby LTI tool setup form copy and paste the following links into the right input fields in Copyleaks Dashboard as shown below:

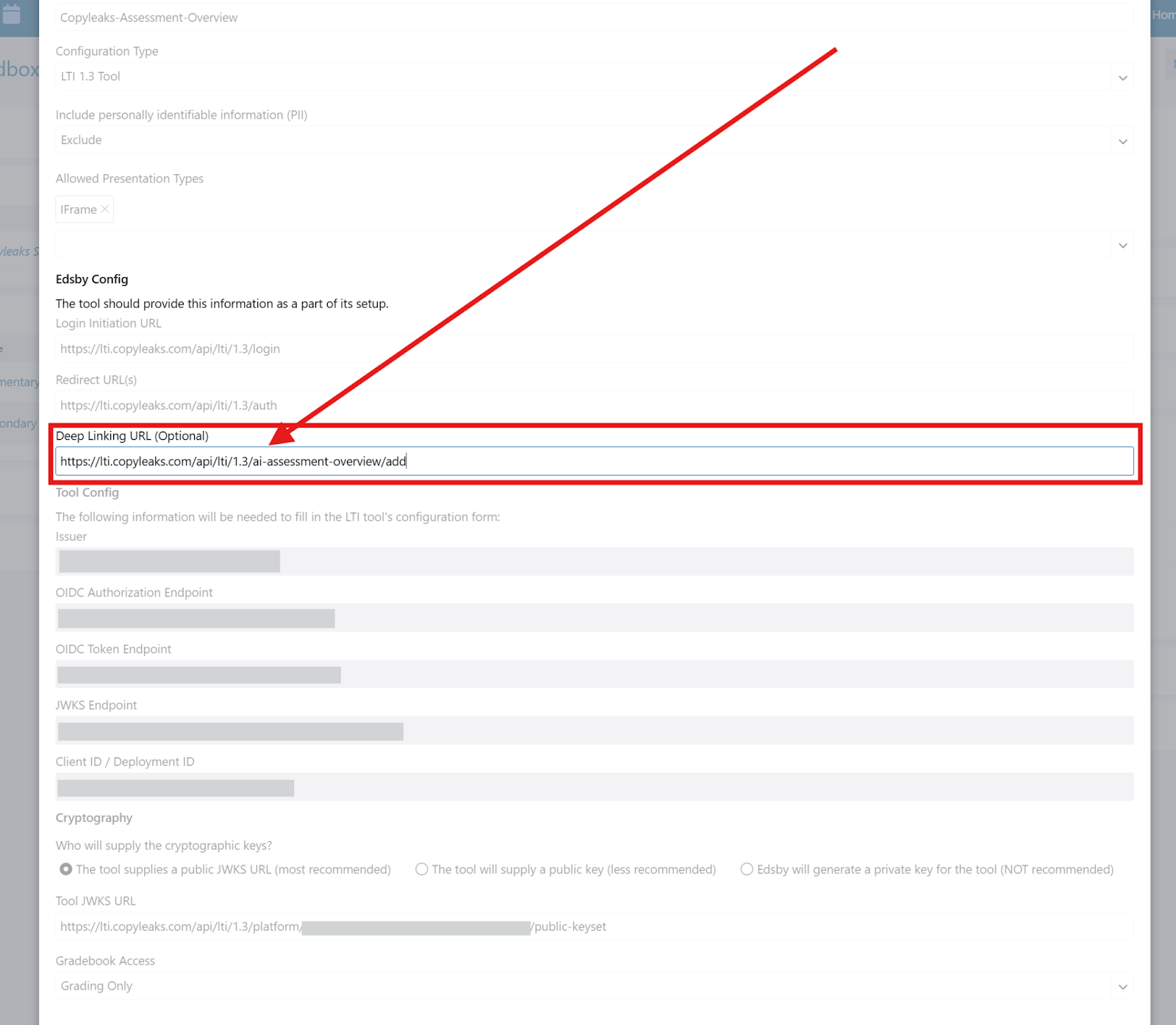

- In the “Deep Linking URL” input field, enter the url of the:
- In Copyleaks Dashboard integrations page, Click on the “Connect AI-Assessment Overview” link for, existing assignment tool integration you want to connect the AI-Assessment Overview tool integration to.
- https://lti.copyleaks.com/api/lti/1.3/ai-assessment-overview/add

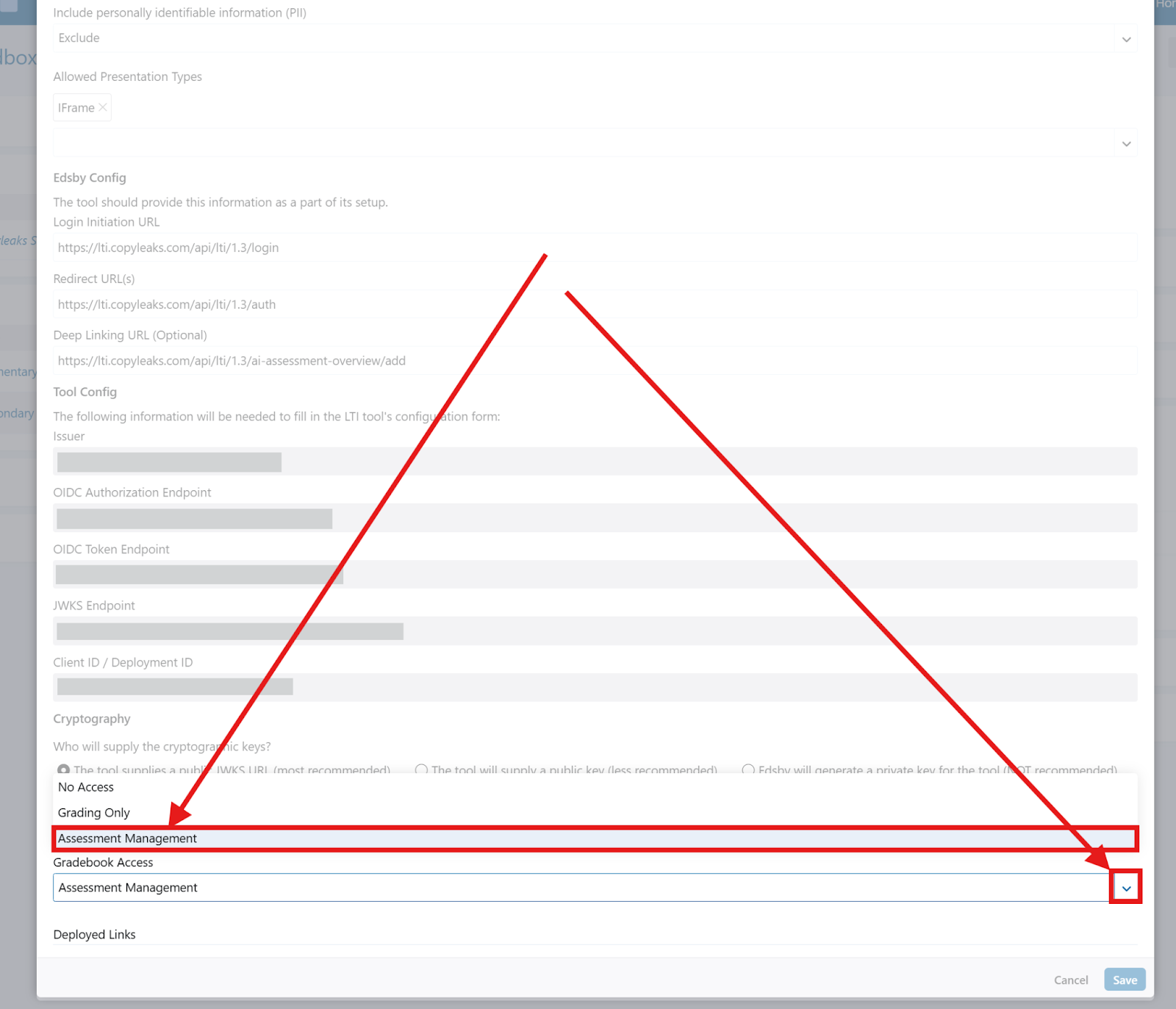

- In the drop down menu for “Gradebook Access” Choose “Assessment Management”:

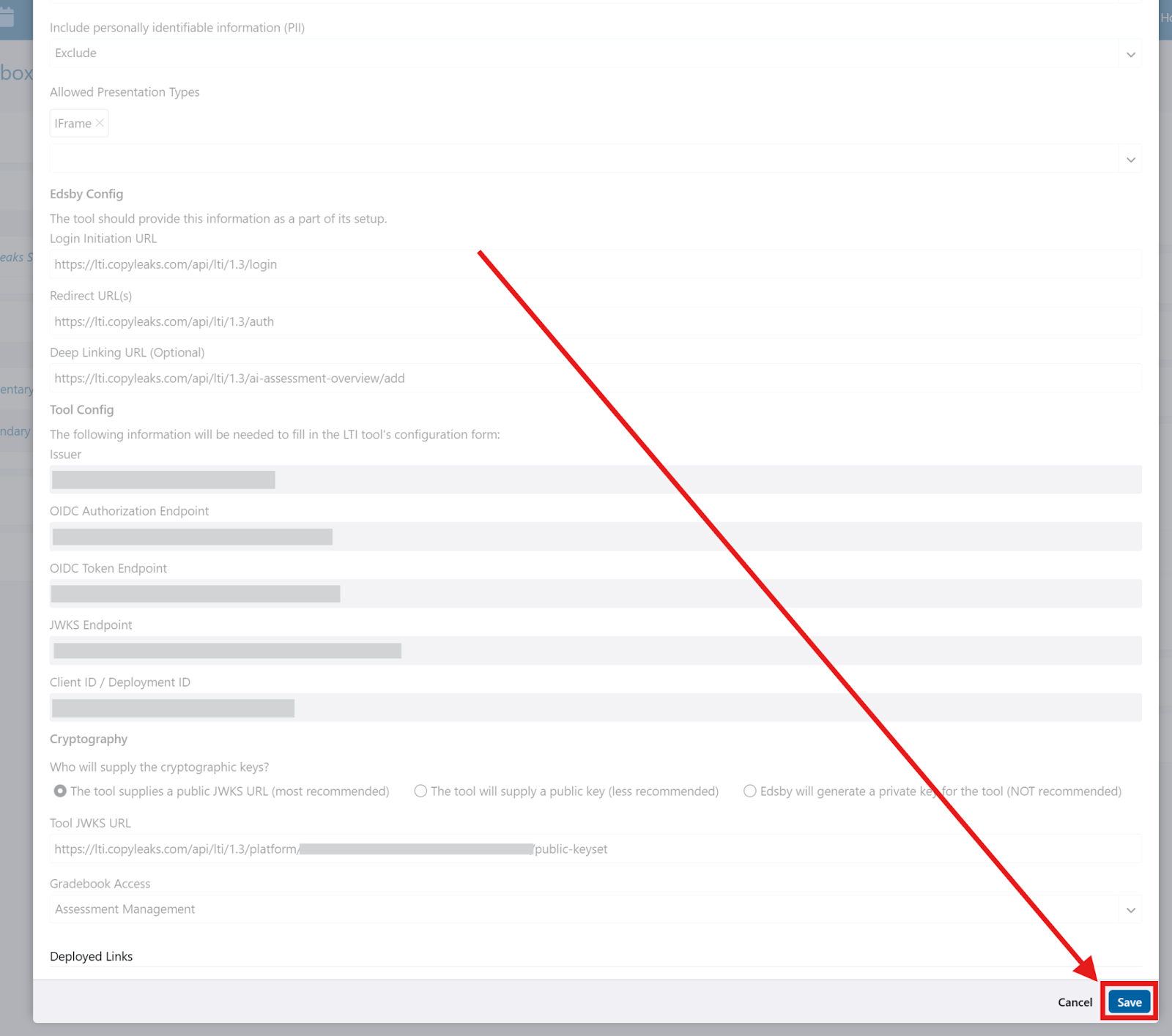

- In Edsby LTI Tool setup form, click on the “Save” button in the bottom right corner:

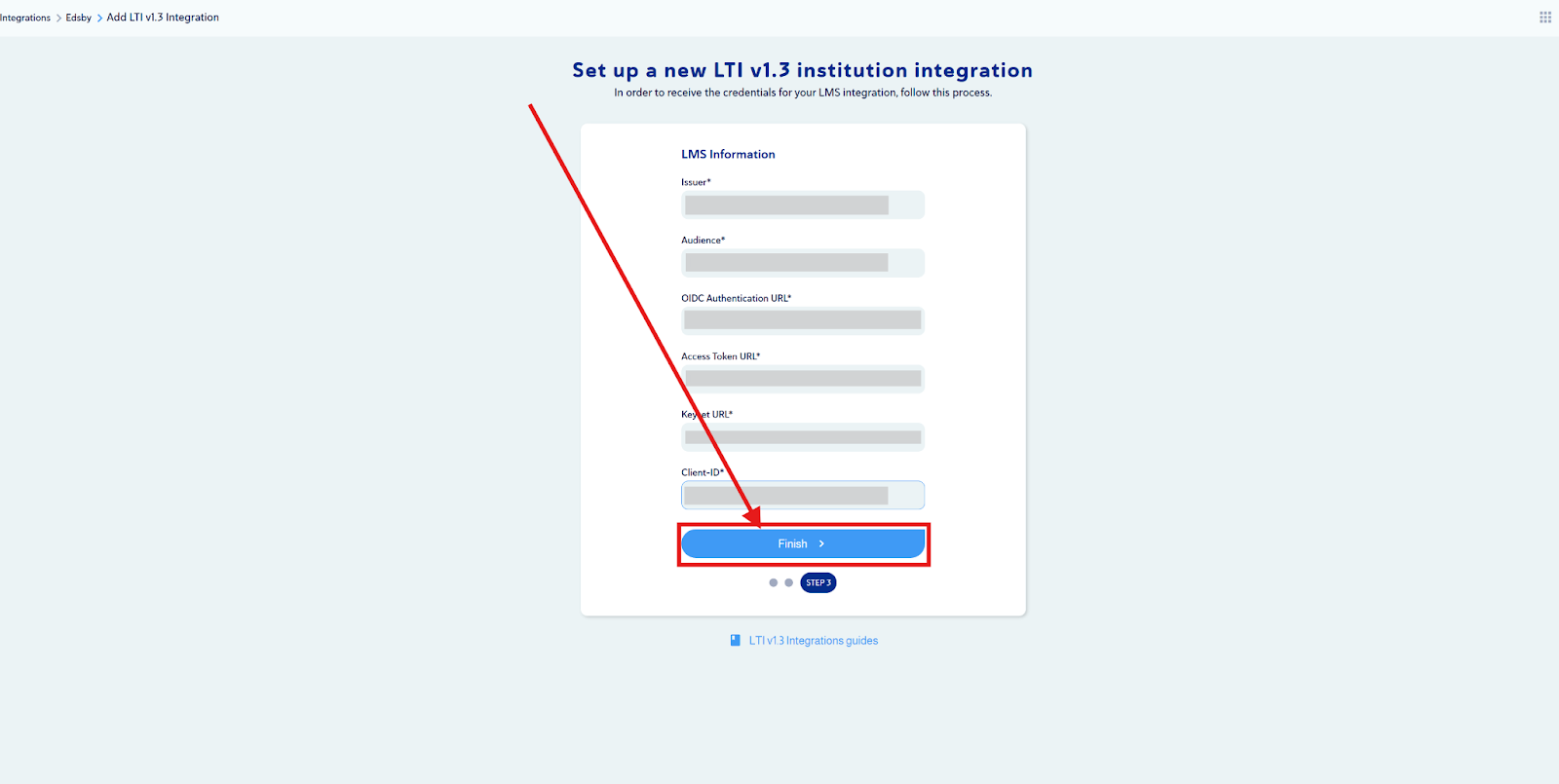

- In Copyleaks Dashboard, click on “Finish” button and wait for the process to finish:

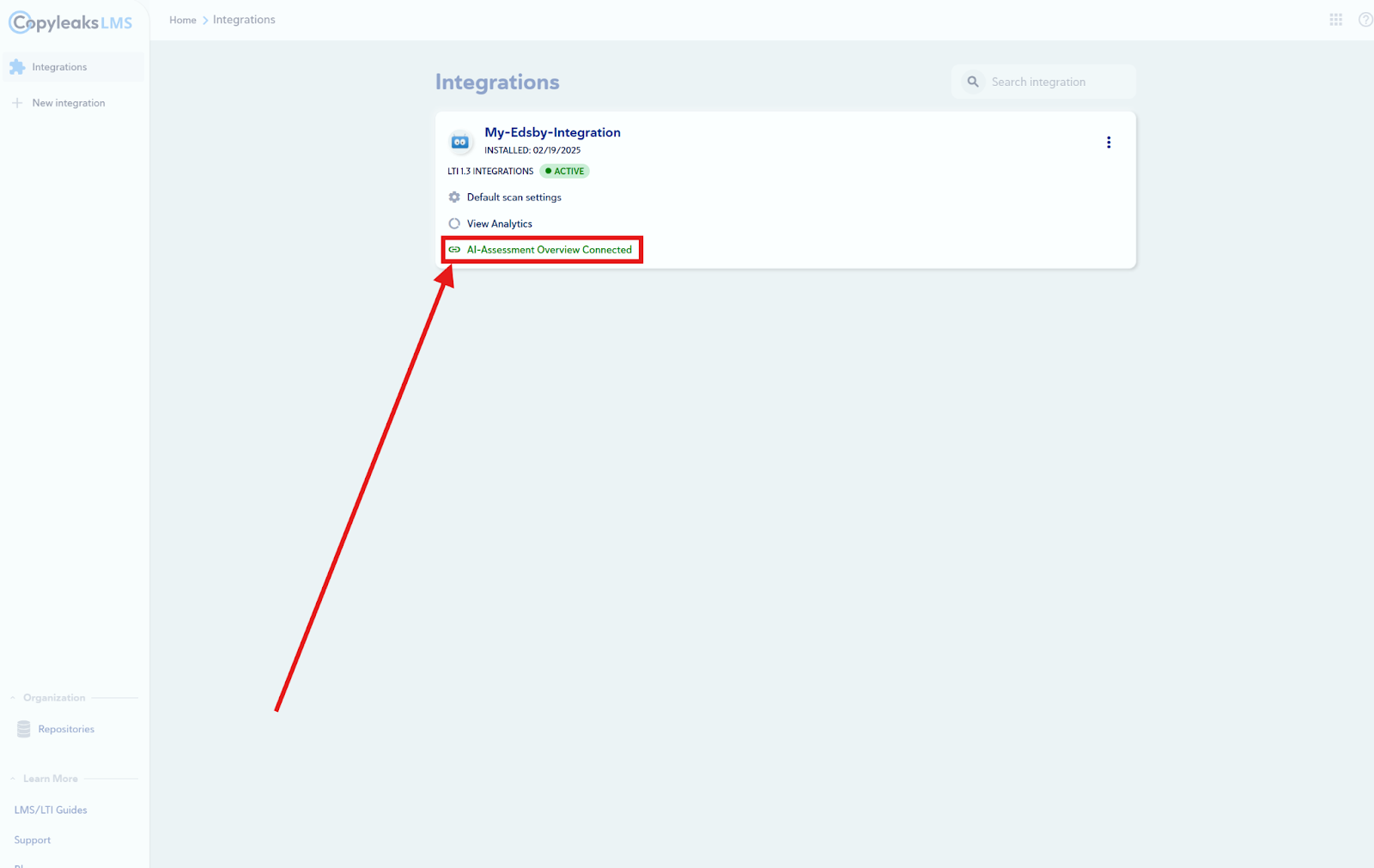

- If done correctly, in Copyleaks Dashboard setup tab you will be navigated to the “integrations” page and you will see that the “AI-Assessment-Overview” tool integration is connected to the “Assignment” tool integration (you chose) - The “Connect AI-Assessment Overview” link will be changed to “AI-Assessment Overview Connected” with a green color, like in the image below:
-
Next, to use the “AI-Assessment-Overview” tool in Edsby class, navigate to whatever class you would like to use the AI-Assessment-Overview tool in.

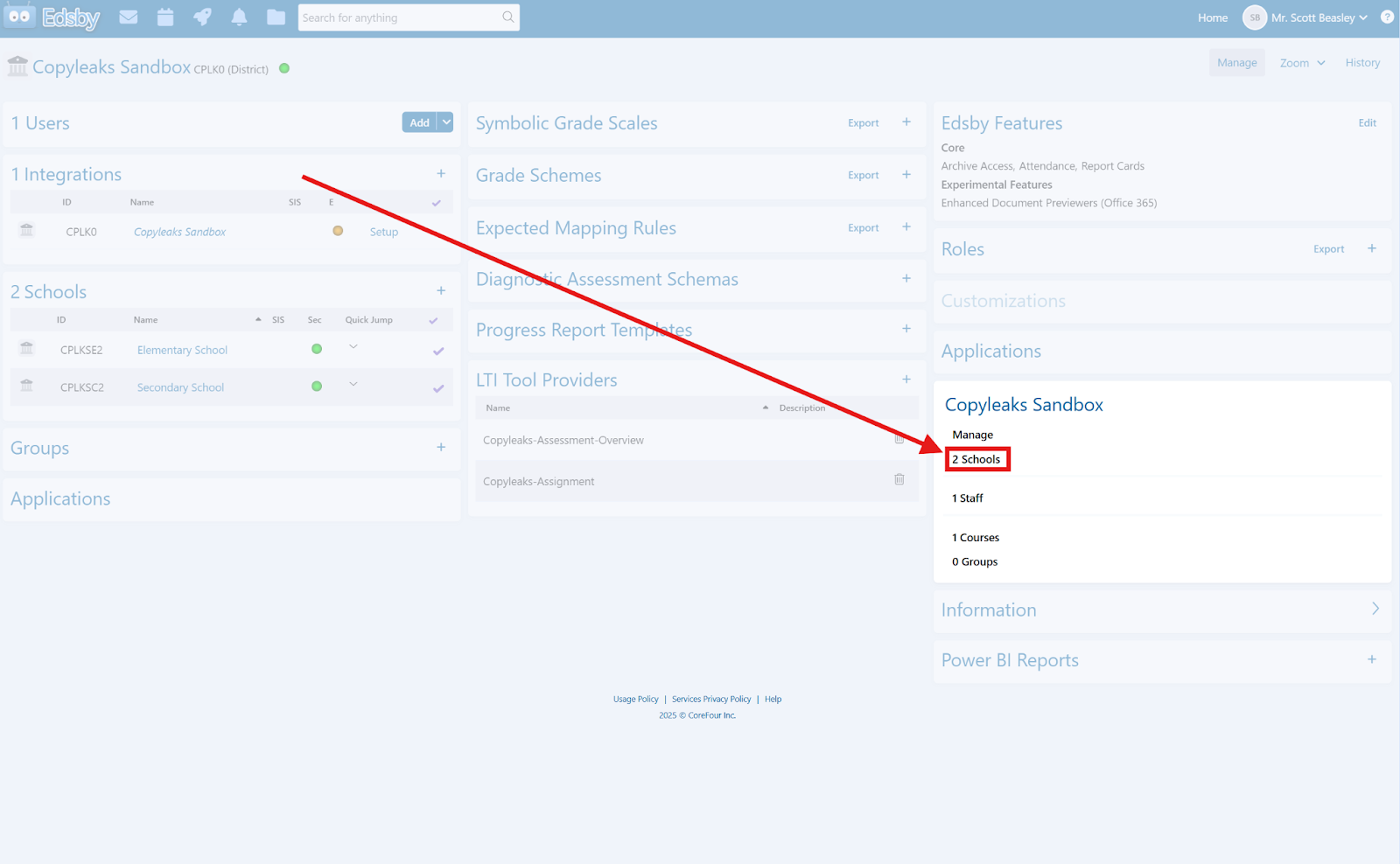

- First, navigate to your schools under the district:

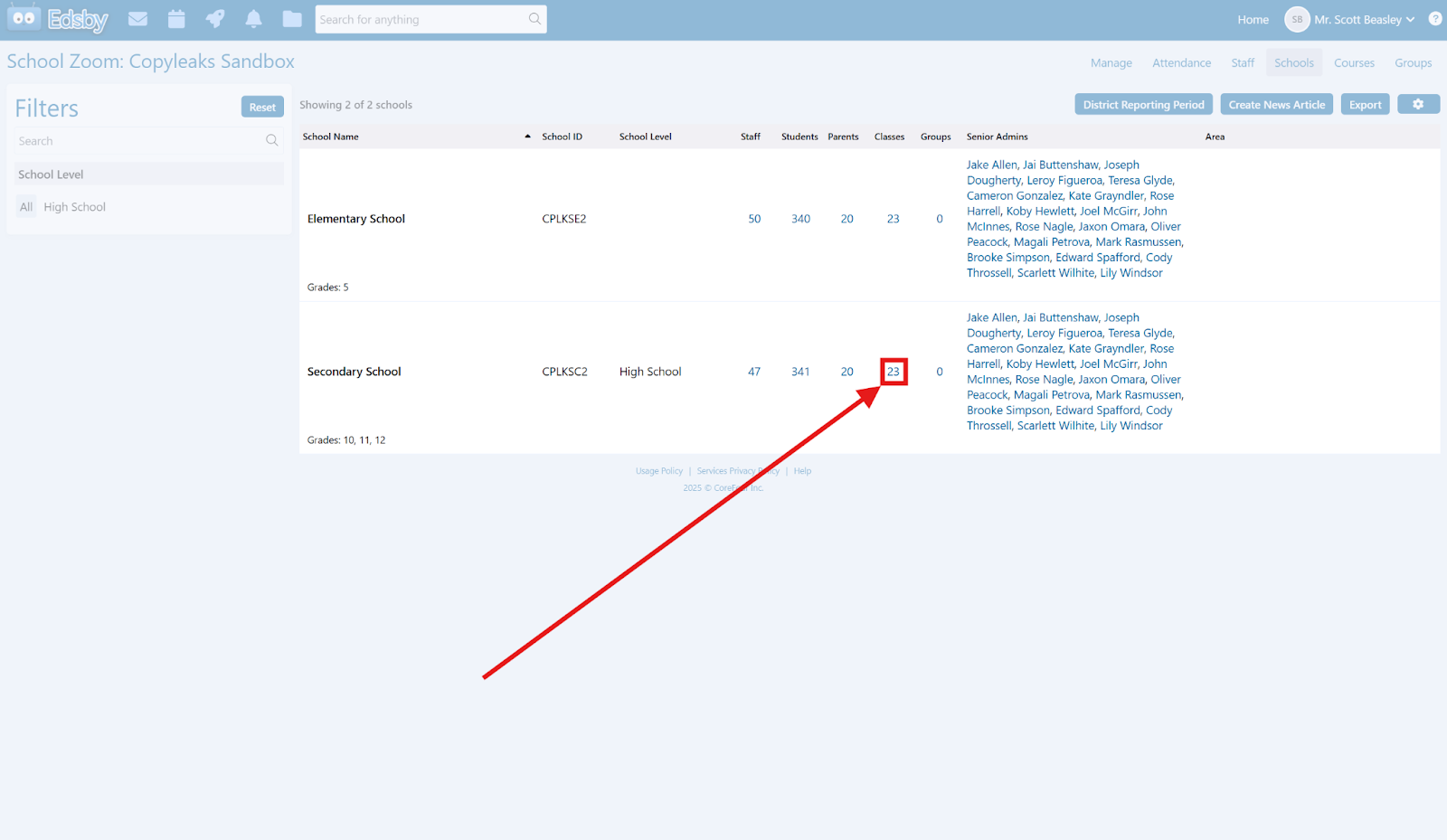

- Click on the classes number of the school you want to use the tool in:

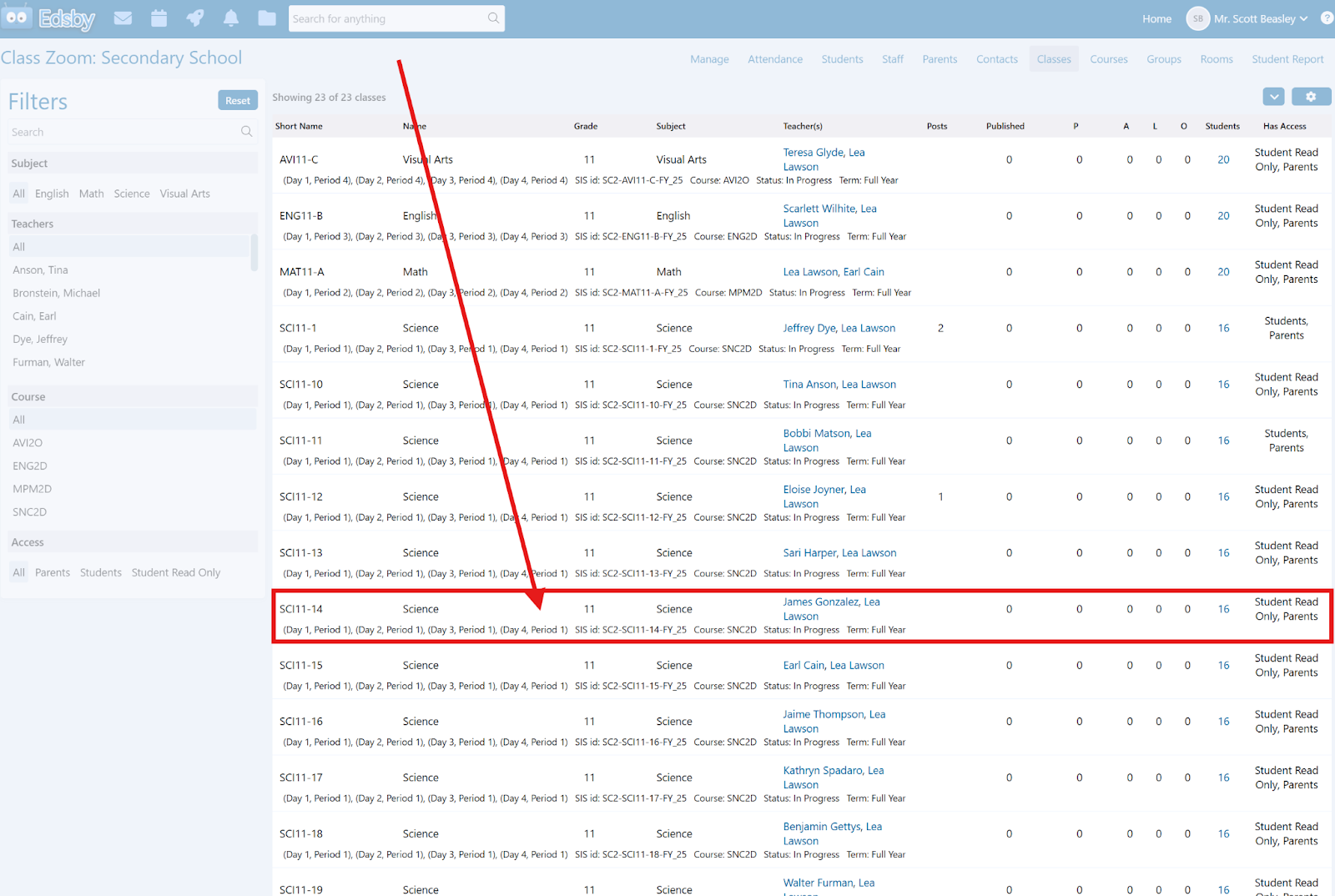

- Choose any class you would like to use the tool in (in this example we chose “SCI11-14”):

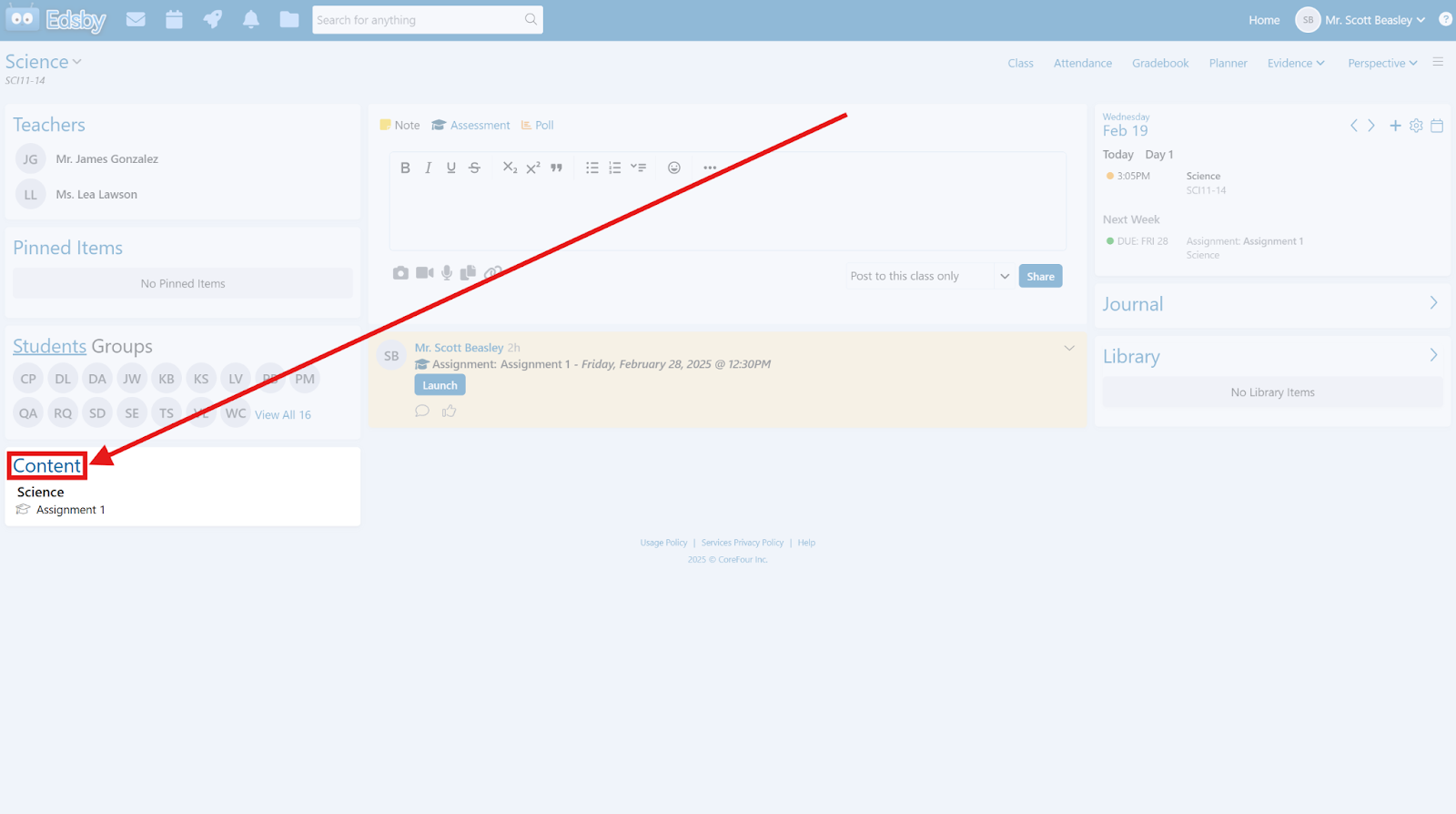

- Click on the class “Content” button:

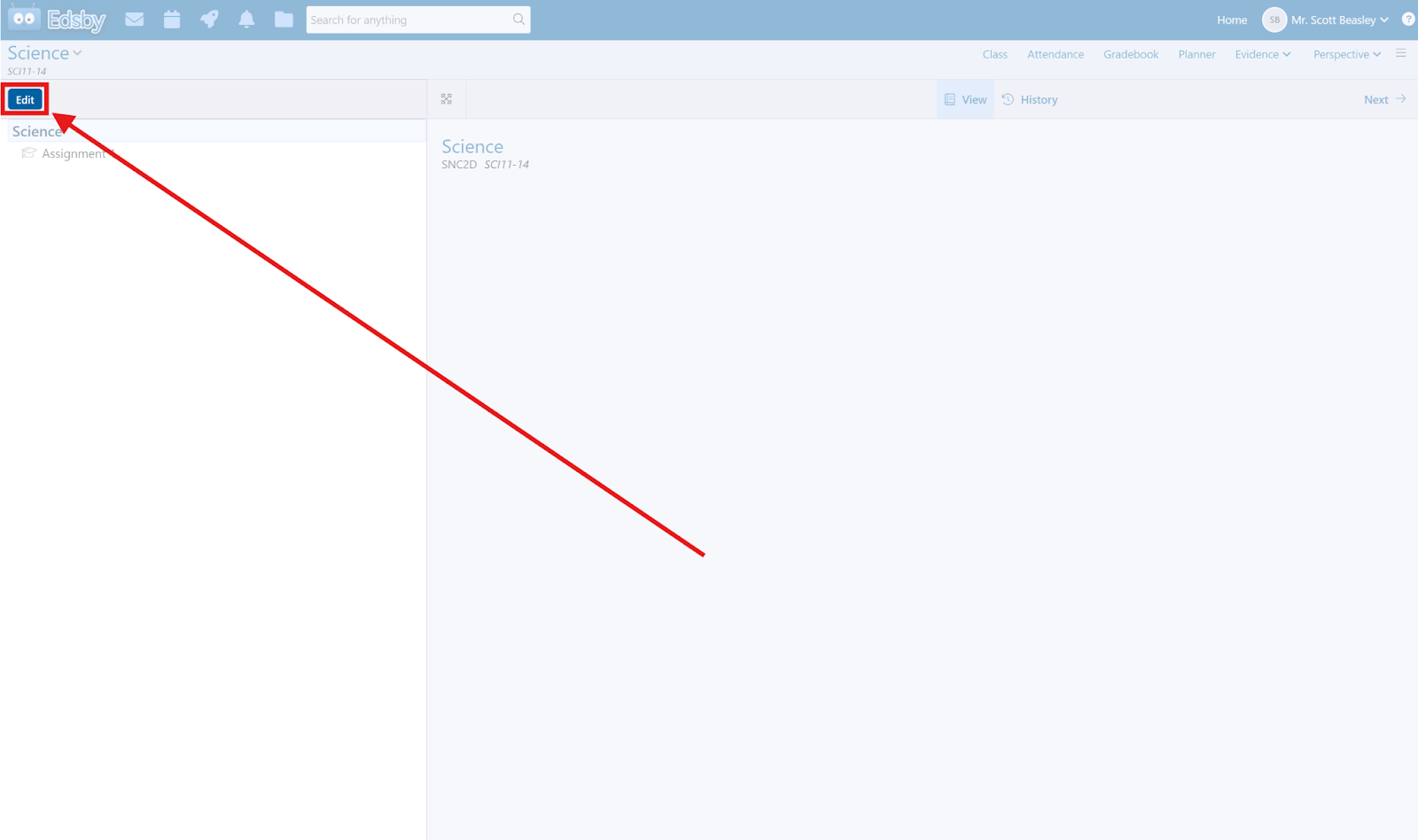

- Click on the “Edit” button in the top left corner:

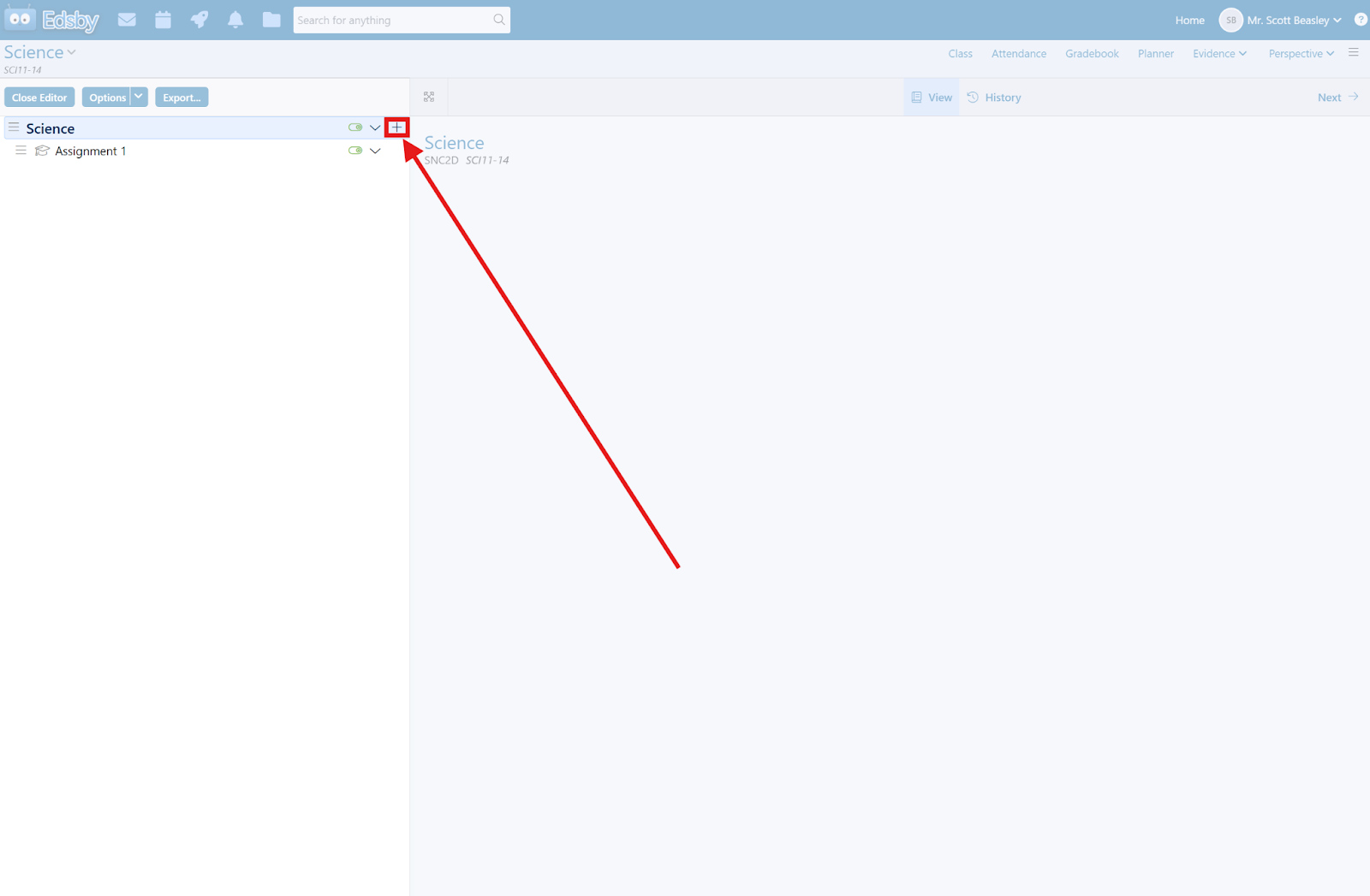

- Click on the “+” button:

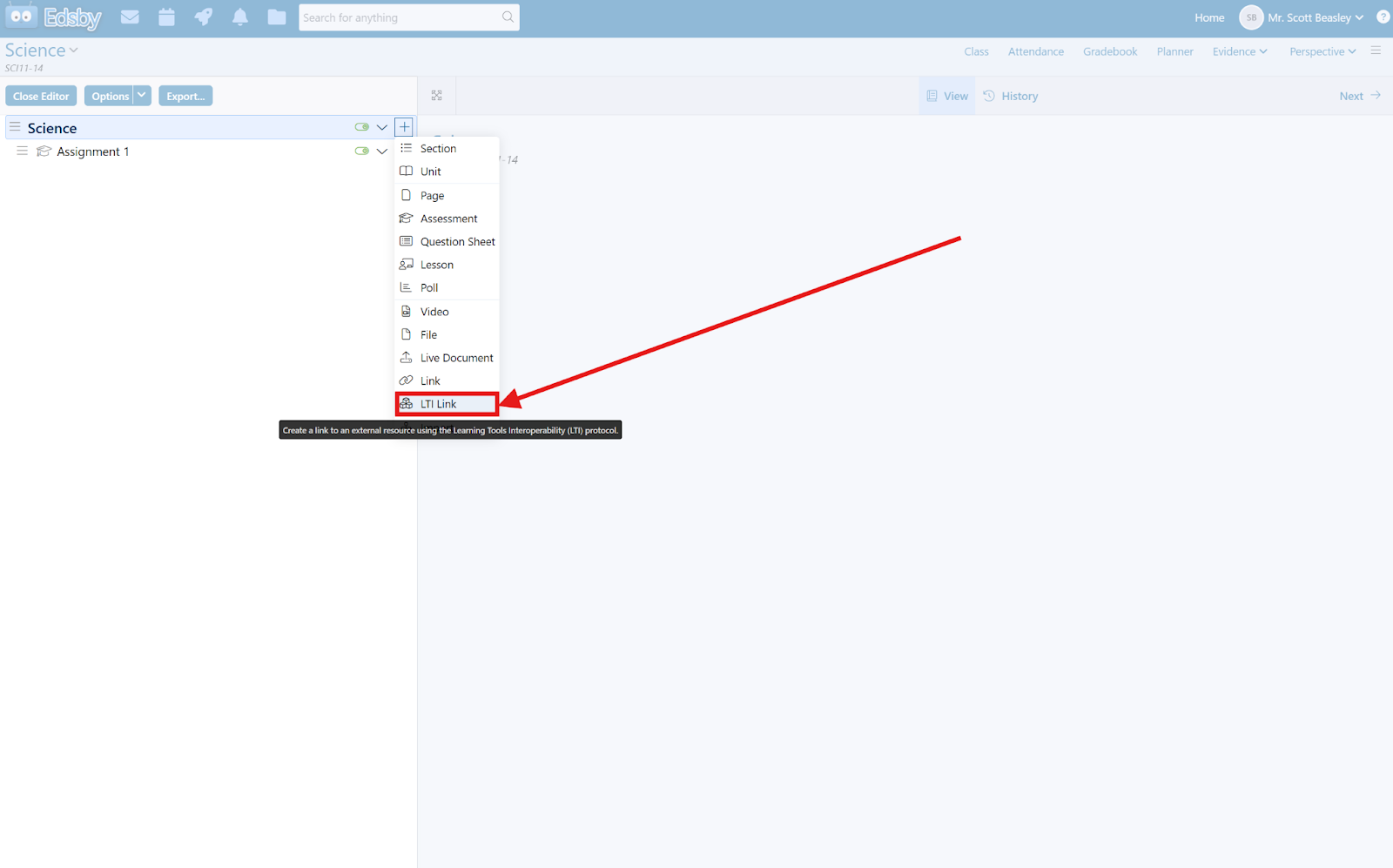

- From the list that opens up choose “LTI Link”:

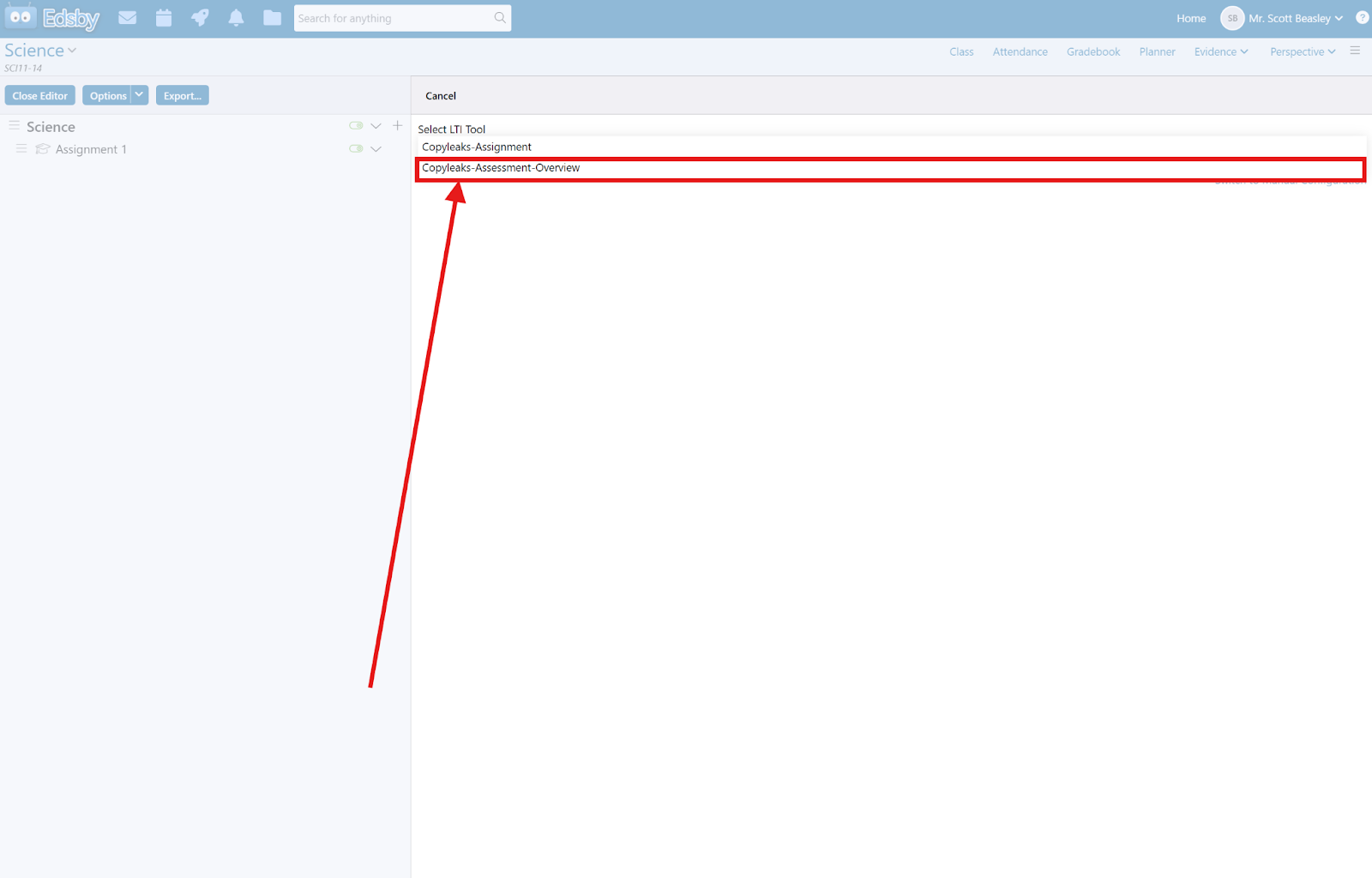

- In the drop down for “Select LTI Tool” choose the tool you configured (will be the name you chose in step 2.4):

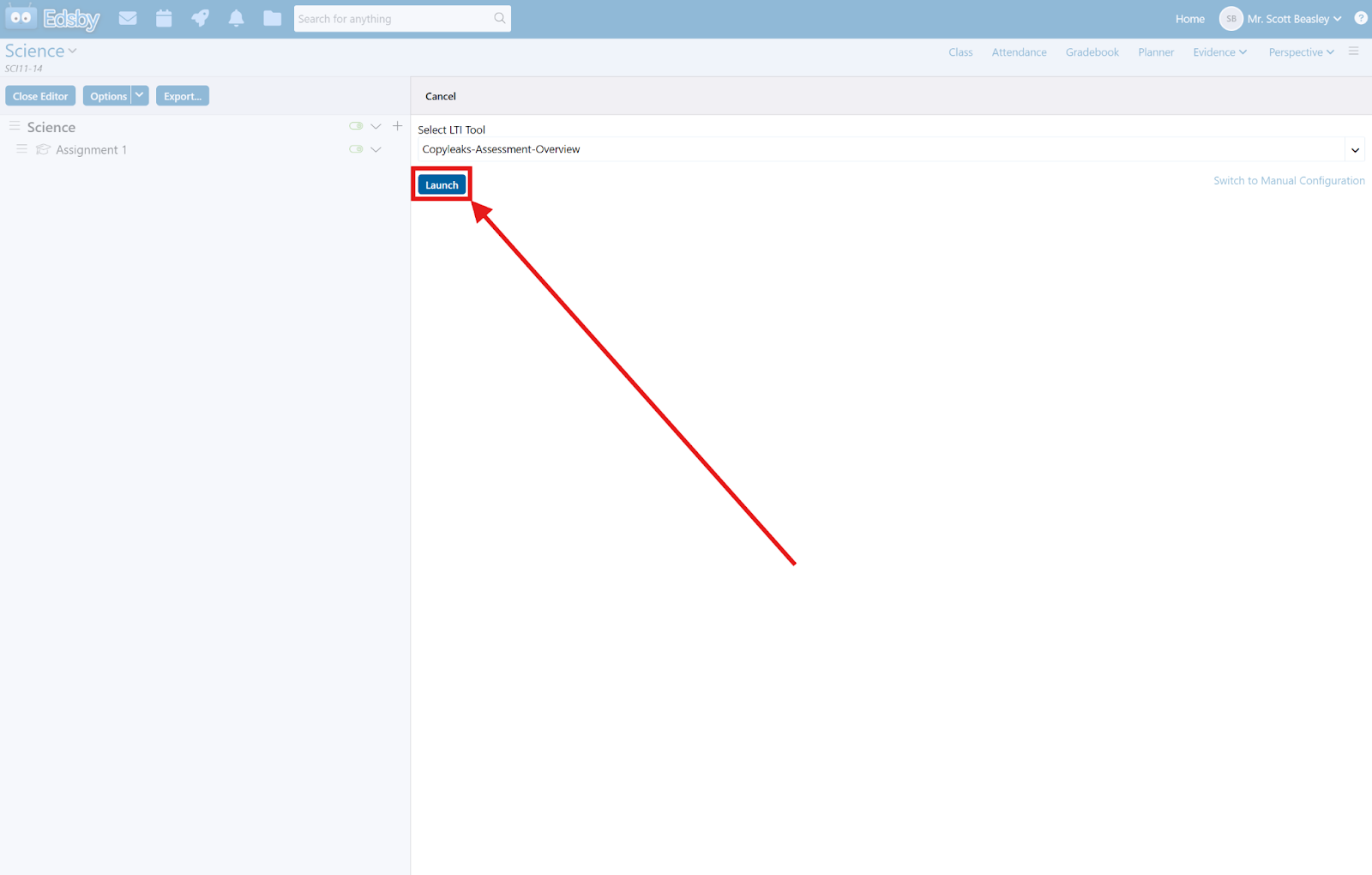

- After selecting the tool, click on the “Launch” button:

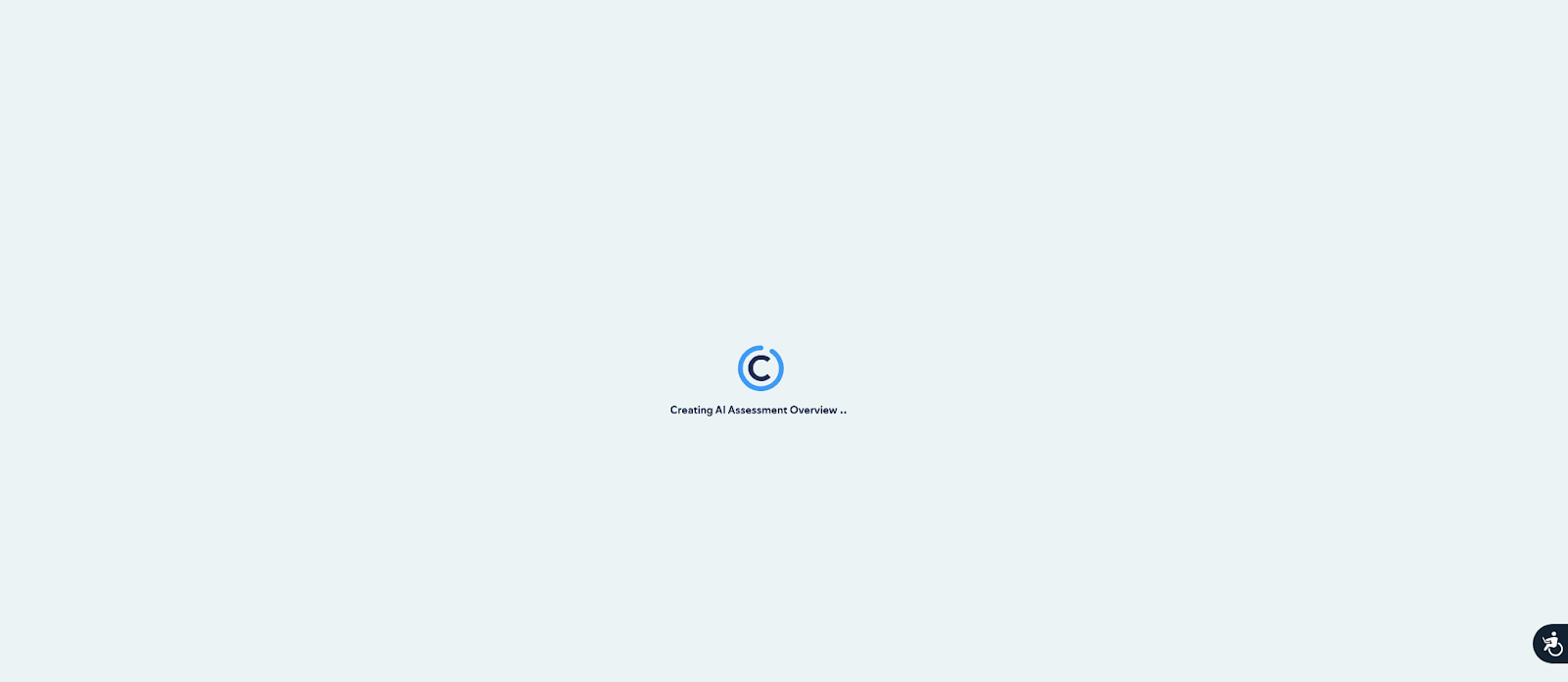

- The tool should load up in a new tab and closed automatically:

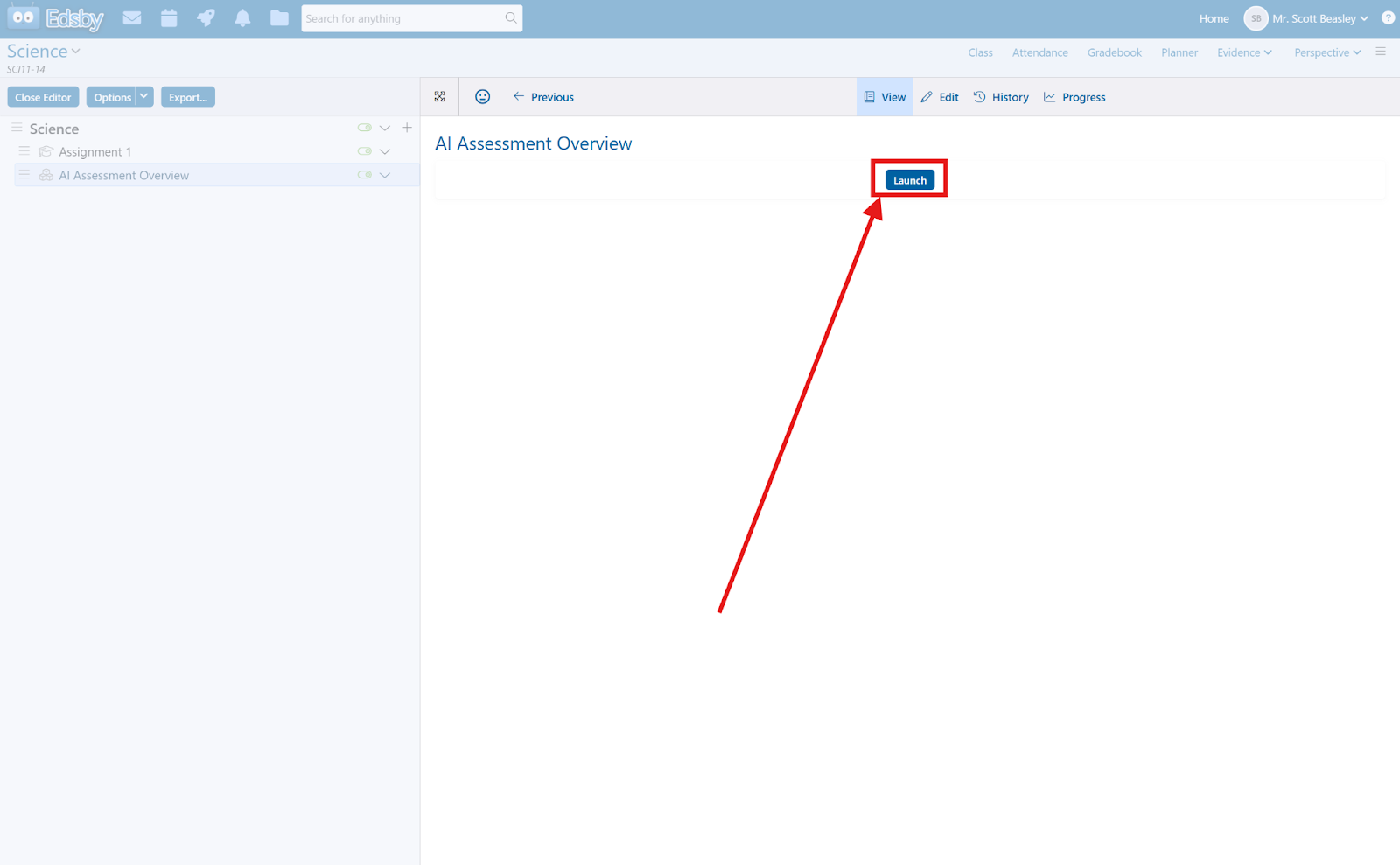

- To open the tool and use it, click on the “Launch” button:

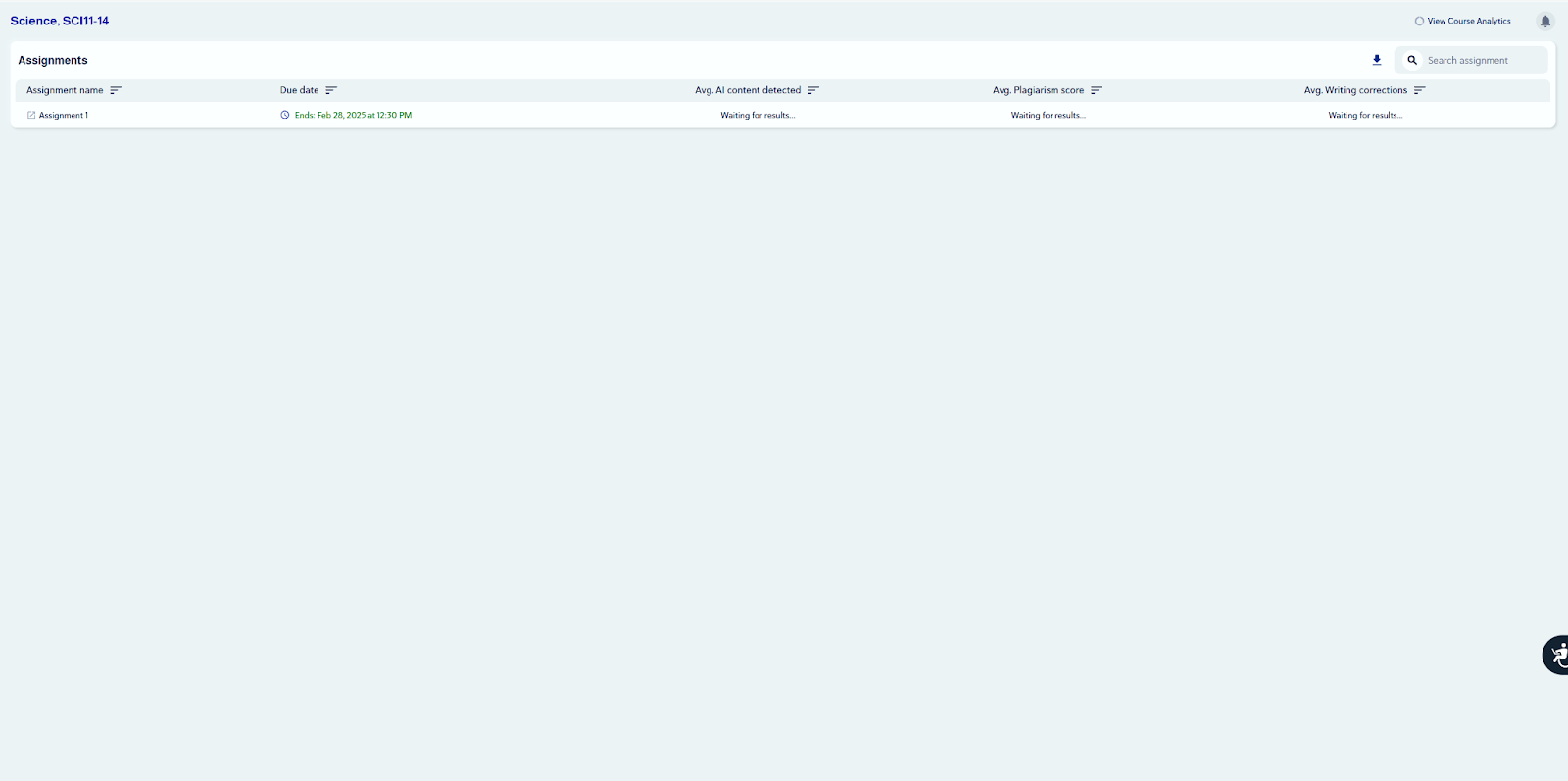

- The tool should load up in a new tab:
- First, navigate to your schools under the district:

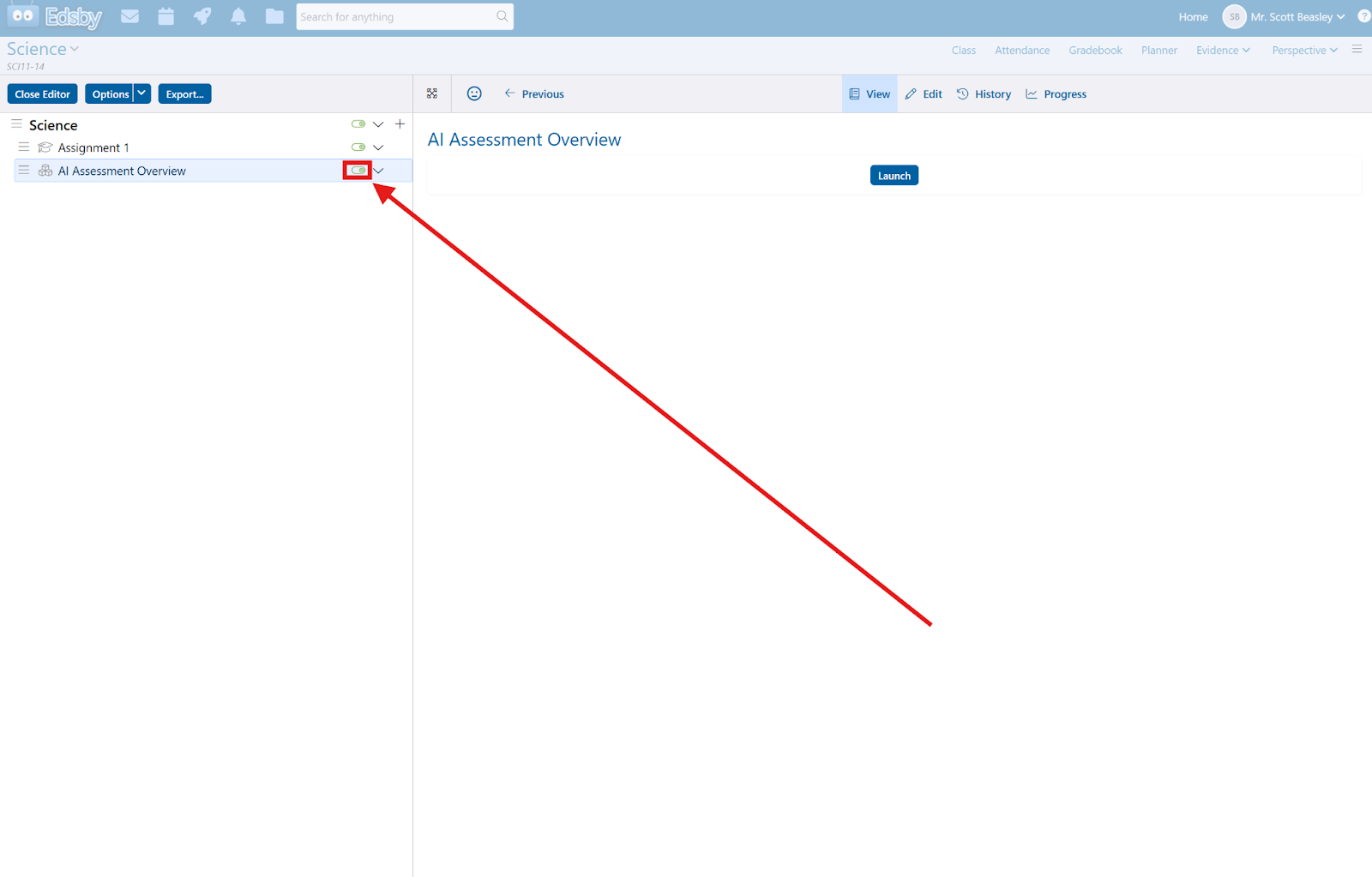

To make the tool visible for students as well click on the toggle button:
